Removing and installing convenience feature control unit (N57) - AR80.45-P-6080E
MODEL 202 with CODE (412b) power-operated tilting/sliding roof with CODE (414a) power-operated glass tilting/sliding roof with CODE (583) power windows (front doors) with CODE (584a) power windows 4-fold or 6-fold
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove battery | AR54.10-P-0005EA | |

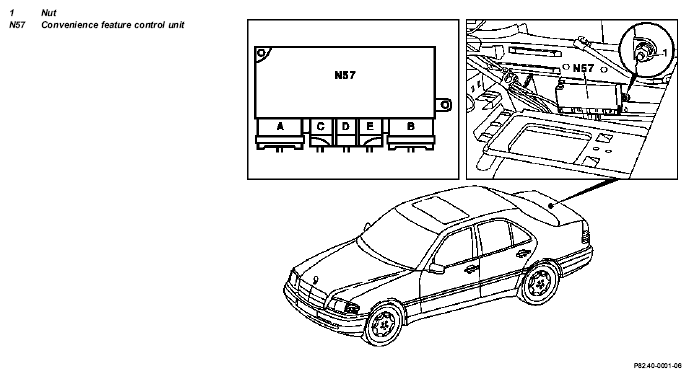

| 2 | Unscrew nut (1) | ||
| 3 | Take off control unit (N57) over threaded bolt | ||
| 4 | Unplug connectors (C, D, E) from control unit (N57) | ||
| 5 | Press connectors (A, B) off control unit (N57) | ||
| 6 | Install in the reverse order | ||
| Perform operational check of control unit (N57) |
