Removing and installing DAS infrared remote control module - AR80.30-P-4500E

MODEL 202 as of 1.8.96 up to 31.5.97, 202.083 up to 31.5.97

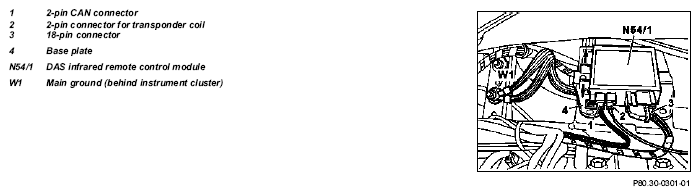

Fig 1: Identifying DAS Infrared Remote Control Module Remove/Install Components

	Removal, installation
1	Remove instrument cluster		AR54.30-P-6015EA
2	Disconnect 2-pin CAN connector (1)
3	Disconnect 2-pin connector for transponder coil (2)
4	Disconnect 18-pin connector (3)
5	Press retaining lugs (arrows) apart
6	Remove DAS infrared remote control module (N54/1) from base plate (4)	When replacing the DAS infrared remote control module (N54/1) or the remote control key always specify the lock number, because the two parts are matched to one another. After replacement of the DAS infrared remote control module (N54/1) perform version coding according to diagnosis manual. When installing insert the right mounting tab on the DAS infrared remote control module (N54/1) into the base plate (4).
7	Reinstall in opposite order
