Removing and installing fuse box in trunk - AR54.15-P-1324A

MODEL 202, 208

Illustrated on model 202

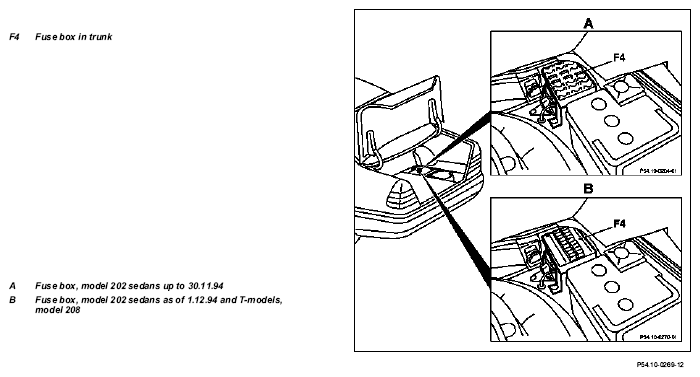

Fig 1: Identifying Fuse Box In Trunk Remove/Install Components (Model 202, 208) - Illustrated On Model 202

	Removal, installation
1	Disconnect ground cable at the battery		AR54.10-P-0003A
2	Unclip cover on fuse box (4)
3	Unscrew nuts on left support base for fuse box (F4)
4	Unclip fuse box from sheet metal channel on floor of trunk and remove right support base from guide
5	Remove fuse blocks (A, B and C)
6	Disconnect leads on fuse boxes or fuse blocks	Disconnect leads only when replacing entire fuse and relay box. Tie disconnected leads from individual fuse blocks (model 202 sedans as of 1.12.94 and T-models, model 208) together and mark to prevent mix-ups.
		Model 202 sedans up to 30.11.94	AR54.15-P-1255-01EA
		Models 170, 202 sedans as of 1.12.94 and T-models 208, 210	AR54.15-P-1255-01EB
	Connect leads to fuse boxes or fuse blocks.	Model 202 sedans up to 30.11.94	AR54.15-P-1255-02EA
		Models 170, 202 sedans as of 1.12.94 and T-models 208, 210	AR54.15-P-1255-02EB
	Assignments and wire connections for fuse blocks	Model 202 sedans up to 30.11.94	GF54.15-P-1255EB
		Model 202 sedans as of 1.12.94 up to 31.5.97 and T-models	GF54.15-P-1255EC
		Model 202 sedans as of 1.6.97	GF54.15-P-1255EG
		Model 208	GF54.15-P-1255EF
7	Reinstall in opposite order

Fig 2: Identifying Removal Tool (202 589 03 33 00)
