Removing and installing fuse and relay box - AR54.15-P-1255EE

MODEL 202.01 /02 /12 as of 1.9.96 up to 31.5.97, 202.07 /08 /18 up to 31.5.97

Fuse and relay box

Sedans as of 1.09.96 up to 31.5.97 and T-models

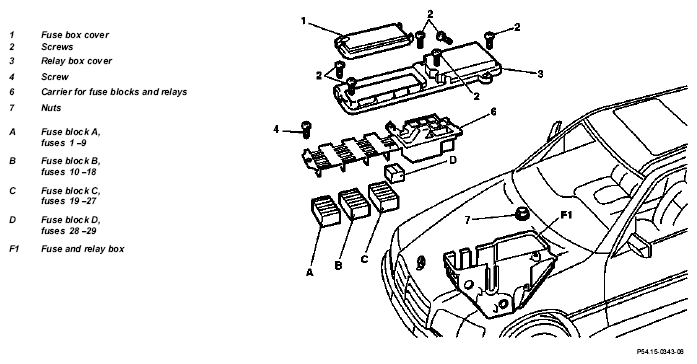

Fig 1: Identifying Fuse And Relay Box Remove/Install Components (Model 202.01 /02 /12 As Of 1.9.96 Up To 31.5.97, 202.07 /08 /18 Up To 31.5.97) - Sedans As Of 1.09.96 Up To 31.5.97 And T-Models

	Removal, installation
1	Disconnect ground lead from battery		AR54.10-P-0003A
2	Remove cover on fuse box (1)	Check gasket for damage
3	Unscrew screws (2)
4	Remove relay box cover (3)	Check gasket for damage
5	Unscrew screw (4)
6	Remove fuse blocks (A-D)	Pry out carrier for fuse blocks and relays (6) as far as possible and then press clamping springs on carrier outward
7	Disconnect leads to fuse boxes or fuse blocks	Disconnect leads only when replacing entire fuse and relay box. To prevent mix-ups, tie disconnected leads from individual fuse boxes or blocks together and mark	AR54.15-P-1255-01EB
	Reconnect leads to fuse boxes or fuse blocks	Models 170, 202 sedans as of 1.12.94 and T-models, 208, 210	AR54.15-P-1255-02EB
	Assignments and lead connections to fuse blocks	Model 202 as of 1.9.96 up to 31.5.97 and T-models	GF54.15-P-1255EC
8	Disconnect all relays	Relay holder assignment	AR54.15-P-1255-03EA
9	Remove exterior lamp failure monitoring module	For this purpose release catch strap
10	Remove carrier for fuse blocks and relays (6)
11	Unclip connectors at bottom of relay holder or carrier
12	Remove connectors for exterior lamp failure monitoring module		AR54.15-P-1255-04EA
	Install connectors for exterior lamp failure monitoring module		AR54.15-P-1255-05EA
13	Unscrew nuts (7)
14	Remove fuse and relay box (F1)	Check gasket for damage
15	Reinstall in opposite order

Fig 2: Identifying Unlocking Tool (202 589 03 33 00)
