Disconnect/connect battery's ground cable - AR54.10-P-0003PV

MODEL 463.241 with CODE (979) Special protection version with CODE (ZS4) Special protection version FB4 with CODE (E26) 100 Ah additional battery incl. cutoff relay

MODEL 463.241 with CODE (979) Special protection version with CODE (ZS6) Special protection version FB6 with CODE (E26) 100 Ah additional battery incl. cutoff relay

MODEL 463.241 with CODE (979) Special protection version with CODE (ZS7) Special protection version FB7 with CODE (E26) 100 Ah additional battery incl. cutoff relay

Shown on left

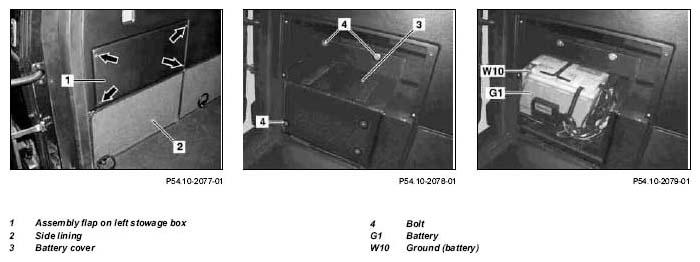

Fig 1: Locating Ground Cable (Model 463) - Shown On Left

Shown on the right-hand side

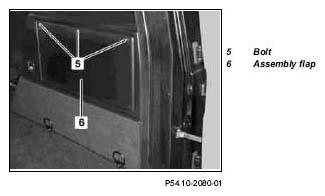

Fig 2: Locating Ground Cable (Model 463) - Shown On The Right-Hand Side

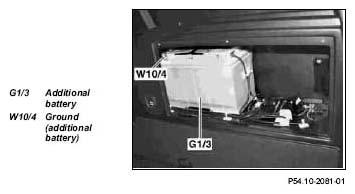

Fig 3: Identifying Additional Battery And Ground

	Disconnect, connect
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear safety gloves, acid-resistent clothing and eye protection. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery	All models	AH54.10-P-0001-01A
1	Withdraw ignition key
2	Detach assembly flap on left stowage box (1) in load compartment	Remove the screws (arrows).
3	Detach side lining (2) carefully	The side lining (2) is stuck on.	*BR00.45-Z-1002-02A
4	Detach battery cover (3)	For this purpose, unscrew bolts (4)
			*BA54.10-P-1020-01C
5	Detach battery ground (W10) from the battery (G1)	If necessary, connect quiescent current retention unit.
			*WH58.30-Z-1012-09A
6	Unscrew bolts (5) and remove assembly flap (6) from stowage box in right of load compartment	Only for vehicles with additional battery 100 Ah incl. cutoff relay, code E26.
7	Detach ground (additional battery) (W10/4) from the additional battery (G1/3)	Only for vehicles with additional battery 100 Ah incl. cutoff relay, code E26. If necessary, connect quiescent current retention unit.
			*WH58.30-Z-1012-09A
8	Connect in the reverse order.
9	code radio	See owner's manual.
10	Set the time on the instrument cluster and if necessary set the time on the stationary heater timer
