Removing and installing wiper system - AR82.30-P-6400F

MODEL 210

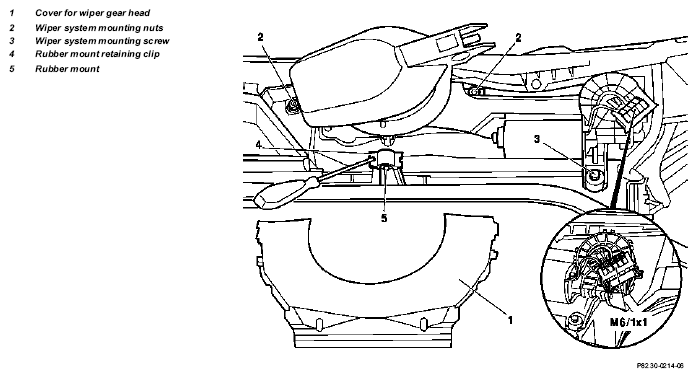

Fig 1: Identifying Wiper System Remove/Install Components - Model 210

Modification notes

28.2.97

Table of test and adjustment data for windshield wipers added

AR82.30-P-6400-01E

	Removing
	Injury hazard  Windshield wiper mechanism can pinch, crush or, in extreme cases, even sever extremities	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Withdraw ignition key
2	Remove wiper arm		AR82.30-P-6100E
3	Open engine hood, raise to vertical position		AR88.40-P-1000F
4	Remove left air inlet		AR83.25-P-1403F
5	Remove right air inlet		AR83.25-P-1404F
6	Remove cover on wiper gear head (1)
N	Unscrew retaining nuts for wiper system (2)
8	Unscrew retaining screw for wiper system (3)
9	Open retaining clip (4) for rubber mount (5)
10	Disconnect wiper motor connector
11	Remove wiper system	Limited space, do not damage windshield
	Installing
12	Position wiper system
13	Connect wiper motor connector
14	Close retaining clip (4) for rubber mount (5)
15	Screw in retaining nuts for wiper system (2)
16	Screw in retaining screw for wiper system (3)
17	Install wiper arm		AR82.30-P-6100E
18	Adjust wiper system		AR82.30-P-6400-01E
		Distance between wiper gear head and windshield	*BE82.30-P-1001-01A
		Distance between wiper arm and wiper blade	*BE82.30-P-1002-01A
			Figure
19	Press cover onto wiper gear head (1)
20	Install left air inlet		AR83.25-P-1403F
21	Install right air inlet		AR83.25-P-1404F
22	Close engine hood		AR88.40-P-1000F

Test and adjustment values, windshield wiper

Number	Designation			Model 210
BE82.30-P-1001-01A	Dimension	Distance" A" between wiper gear head and windshield	mm	8-12
		See figure		AR82.30-P-6400-01E
BE82.30-P-1002-01A	Dimension	Distance "B" between wiper arm and wiper blade	mm	5
		See figure		AR82.30-P-6400-01E

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)
