Remove/install telephone interface - AR82.70-P-7379EE

MODEL 203.0 /2 /7 with CODE (854) MB portable CTEL

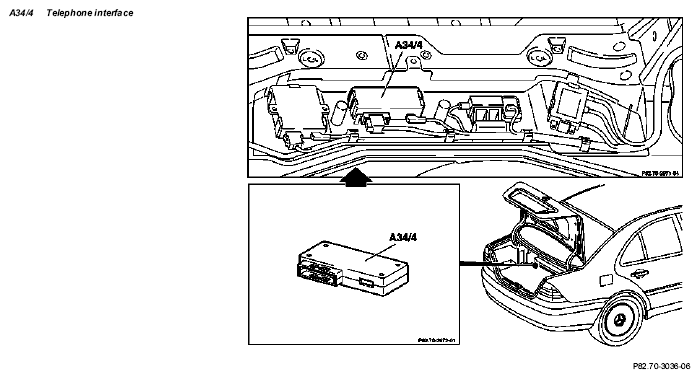

Fig 1: Identifying Telephone Interface Remove/Install Components - Model 203.0 /2 /7 With Code (854)

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/Install
1.1	Transfer basic data from telephone interface (A34/4) to STAR DIAGNOSIS	When replacing telephone interface (A34/4). Installation:  Transfer the buffered basic data to new telephone interface (A34/4).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
2	Remove floor paneling in trunk
3	Remove cover behind rear seat	Remove the 2 screws of the anchoring lugs.
4	Disconnect coupling from telephone interface (A34/4)	Unlock coupling.
		Do not kink or stretch fiber optic cable.
5	Unclip telephone interface (A34/4)
6	Remove telephone interface (A34/4)
7	Install in the reverse order

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
