Emergency-Call (E-Call), location of components - GF82.95-P-0003-01B

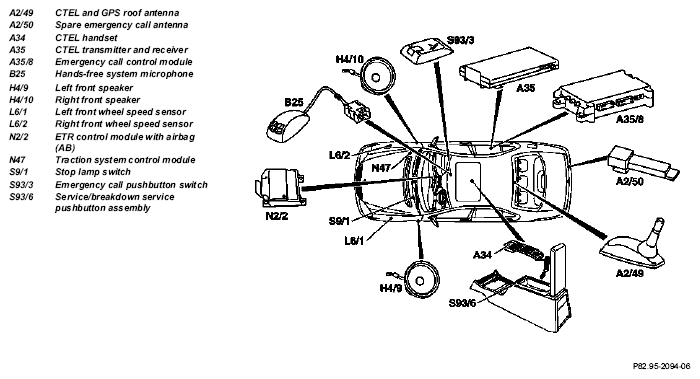

Fig 1: Identifying Emergency-Call Components

G04714056
