Supporting rear axle with wooden blocks - AR35.10-P-0050-04A

Raise rear axle carrier approx. 400 mm. Place wooden blocks of a suitable height under the four mounting points of the rear axle carrier (arrows).

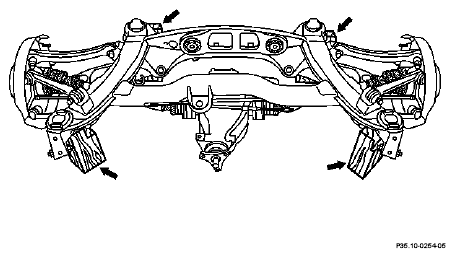

Fig 1: Locating Wooden Blocks Under Mounting Points Of Rear Axle Carrier
