Remove/install spring control arm and replacement of rubber mount - AR35.20-P-0114B

MODEL 129, 170, 202, 208, 210

Shows model 129

Fig 1: Identifying Spring Control Arm And Rubber Mount Remove/Install Components - Shows Model 129
G04713364

Shows model 210

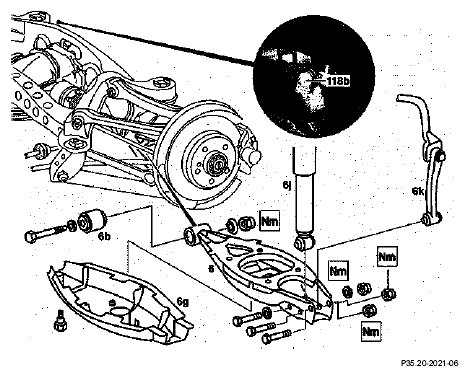

Fig 2: Identifying Spring Control Arm And Rubber Mount Remove/Install Components - Shows Model 210
G04713365
Fig. item etc. Work instructions
NOTESInstallation  Replace self-locking nuts
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
IMPORTANT Remove/install rear spring   AR32.20-P-0230A
  Adjust roll bar switch Model 129 up to 09/95
IMPORTANT Following installation		 ra91001290860x
6 Spring control arm NOTES The rear axle shaft must be horizontal when tightening the nuts
    TORQUE SPECIFICATION Spring control arm to rear axle carrier *BA35.20-P-1001-01A
    TORQUE SPECIFICATION Spring control arm to wheel carrier *BA35.20-P-1002-01A
6b Rubber mount of spring control arm INSPECT If necessary after checking: ↓
    Remove/install spring control arm rubber mount AR35.20-P-0114-01B
    SPECIAL TOOL Extraction and insertion tool Figure
REFER TO COMPONENT MODIFICATIONS Harder spring control arm rubber mount Model 129 BT35.20-P-0001-01A
REFER TO COMPONENT MODIFICATIONS Spring control arm rubber bearings standardized Model 129, 202 BT35.20-P-0002-01A
6 g Spring control arm covering
6j Remove shock absorber or spring strut Remove at spring control arm.
TORQUE SPECIFICATION Shock absorber
    Model 210 *BA32.25-P-1002-03B
    Model 170, 129, 202, 208
TORQUE SPECIFICATION Spring strut (level control system/ADS)		 *BA32.25-P-1003-03A
    Model 210 *BA32.30-P-1002-01A
    Model 202, 208 *BA32.30-P-1003-01B
    Model 129 *BA32.31-P-1003-03A
6k Stabilizer bar link rod TORQUE SPECIFICATION Model 129 *BA32.20-P-1002-04A
    TORQUE SPECIFICATION Model 170, 202, 208 *BA32.20-P-1002-04C
    TORQUE SPECIFICATION Model 210 *BA32.20-P-1001-04D
6 l Remove/install guide rail at spring control arm Model 129 with ASR, ETS, ESP AR35.20-P-0114-02A
36 Frame cross-strut TORQUE SPECIFICATION Model 170, 129 *BA61.10-P-1001-01A
    TORQUE SPECIFICATION Model 208.4 *BA61.10-P-1003-01C
118b Linkage between headlight leveling device and right-hand spring control arm Vehicles with xenon headlamps only
S83/2, S83/3 Remove/install left or right rear axle roll bar (RB) switch Model 129 up to 09/95 ra91001290860x
TORQUE SPECIFICATION REAR AXLE STABILIZER BAR

Number Designation Model 129 Model 129 with ADS
BA32.20-P-1002-04A Self-locking nut for attaching link rod to spring control arm Nm 20 20
TORQUE SPECIFICATION REAR AXLE STABILIZER BAR

Number Designation Model 170 Model 202 without level adjustment Model 202 with level control
BA32.20-P-1002-04C Self-locking nut, linkage rod to track control arm Nm 20 20 20
TORQUE SPECIFICATION REAR AXLE STABILIZER BAR

Number Designation Model 208 without level control Model 208 with level control
BA32.20-P-1002-04C Self-locking nut, linkage rod to track control arm Nm 20 20
TORQUE SPECIFICATION REAR AXLE STABILIZER BAR

Number Designation Model Series 210 with ride-height control/ADS CODE 217 Model Series 210 without ride-height control/ADS CODE 217
BA32.20-P-1001-04D Self-locking nuts, torsion bar link rod to spring control arm Nm 20 20
TORQUE SPECIFICATION REAR AXLE SHOCK ABSORBER

Number Designation Model 129 Model 170 Model 202
BA32.25-P-1003-03A Self-locking nut for attaching shock absorber to spring control arm   Nm 55 55 55
M10 Nm - - -
TORQUE SPECIFICATION REAR AXLE SHOCK ABSORBER

Number Designation Model 208
BA32.25-P-1003-03A Self-locking nut for attaching shock absorber to spring control arm   Nm 55
M10 Nm -
TORQUE SPECIFICATION REAR AXLE SHOCK ABSORBER

Number Designation Model 210
BA32.25-P-1002-03B Self-locking nut for attaching shock absorber to spring control arm Nm 55
TORQUE SPECIFICATION SUSPENSION STRUT REAR AXLE

Number Designation Model 210.0 with level control/ADS
BA32.30-P-1002-01A Self-locking nut, suspension strut level control/ADS to spring control arm Nm 55
TORQUE SPECIFICATION SUSPENSION STRUT REAR AXLE

Number Designation Model 202 with level control Model 208 with level control
BA32.30-P-1003-01B Self-locking nut, ride-height control strut to track control arm Nm 55 55
TORQUE SPECIFICATION STRUT FOR REAR AXLE LEVEL CONTROL SYSTEM

Number Designation Model 129 with electronic level control system / ADS II
BA32.31-P-1003-03A Self-locking nut, ride-height control strut to track control arm Nm 55
TORQUE SPECIFICATION SPRING CONTROL ARM

Number Designation Model 129 Model 170 Model 202
BA35.20-P-1001-01A Self-locking nut, track control arm to rear subframe Stage 1 Nm 70 70 70
Stage 2 ∠ ° - - -
BA35.20-P-1002-01A Self-locking nut, spring control arm to wheel carrier. Nm 120 120 120
TORQUE SPECIFICATION SPRING CONTROL ARM

Number Designation Model 208 Model Series 210 except 210.07 with Code 979 and Code Z06
BA35.20-P-1001-01A Self-locking nut, track control arm to rear subframe Stage 1 Nm 70 70
Stage 2 ∠ ° - -
BA35.20-P-1002-01A Self-locking nut, spring control arm to wheel carrier. Nm 120 120
TORQUE SPECIFICATION FRAME FLOOR ASSEMBLY

Number Designation Model 129 Model 170
BA61.10-P-1001-01A Self-locking bolt connecting rear cross strut to frame floor Nm 120 60
TORQUE SPECIFICATION FRAME FLOOR ASSEMBLY

Number Designation Model 208.435/445 447/465/470
BA61.10-P-1003-01C Self-locking bolt connecting rear cross strut to frame floor Nm 60
Fig 3: Identifying Press Out/In Tool (129 589 01 43 00)
G04713366
