Remove, install front rubber mount in rear axle mount - AR35.10-P-0040-02C

Fig 1: Identifying Removal And Installation Tool (210 589 01 43 00)

Repair materials

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricant	A 000 989 01 60

Removing rubber mounts

Bend up all four tabs at rubber mount (arrows) using a suitable tool.

Fig 2: Identifying Four Tabs At Rubber Mount
Attach puller tool (01c, 01d, 01e) for rubber mount (1a) to rear axle carrier.

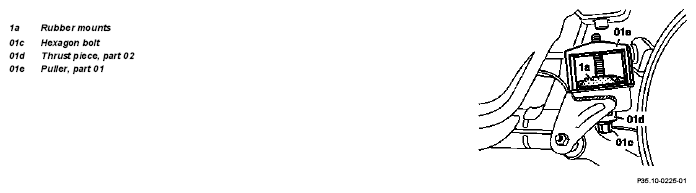

Fig 3: Identifying Rubber Mounts, Hexagon Bolt, Thrust Piece And Puller

If glycol oil is still in rubber mount, cover rubber mount with a suitable cloth or rag (arrow) (wear safety glasses).
Press inner core of rubber mount out of rear axle carrier using puller tool.

Fig 4: Identifying Rubber Mount Covered With A Suitable Cloth Or Rag
Remove puller tool and inner core of rubber mount (arrow).
Wipe away any glycol oil that has flowed out of rear axle carrier.

Fig 5: Removing Puller Tool And Inner Core Of Rubber Mount
If possible press out rubber mount jacket (arrows) using a suitable tool

Fig 6: Locating Rubber Mount Jacket

If the rubber mount jacket cannot be pressed out of the rear axle carrier, press in rubber mount jacket forcefully from outside and lever out at lower edge (arrow) using a suitable tool (assembly lever).

Ensure that rear axle carrier is not damaged near rubber mount seat.

Fig 7: Locating Rear Axle Carrier Lower Edge

Installing rubber mounts

Grease rubber mount (1a) around circumference with lubricant.
Install rubber mount (1a) using insertion tool (01c, 01h, 01i).

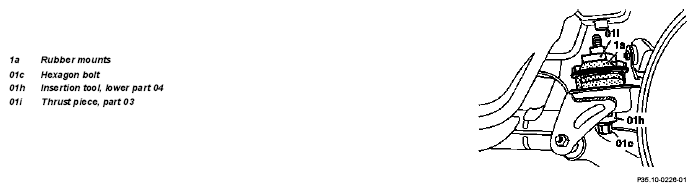

Fig 8: Identifying Rubber Mount, Hexagon Bolt, Lower Part Of Insertion Tool & Thrust Piece
