Removal and installation of track rod rubber mount - AR35.20-P-0112-01B

Fig 1: Identifying Extractor/Puller (124 589 02 43 00)

Removal of rubber mount

1. Pull rubber mount (4b) out of track rod (4) using extractor/puller (04a-04d).

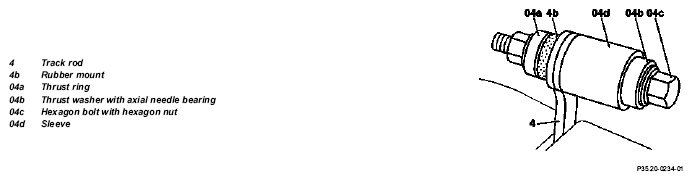

   Fig 2: Identifying Track Rod Rubber Mount Remove/Install Components (1 Of 2)



Installation of rubber mount

2. Pull rubber mount (4b) into track rod (4) using extractor/puller (04a-04d) until the spacer ring (04a) contacts the eye of the track rod.

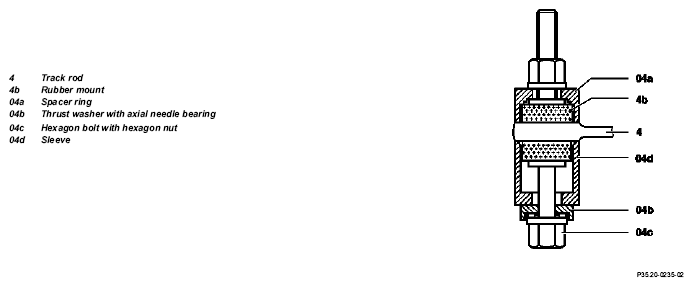

   Fig 3: Identifying Track Rod Rubber Mount Remove/Install Components (2 Of 2)
