Install front differential mount: Front rear axle center assembly mounting modified: Front rear axle center assembly mounting modified - AR35.10-P-0050-01A
| AR35.10-P-0050-01A | Install front differential mount | ||
| Front rear axle center assembly mounting modified | Model 129.060/061/066 | BT35.31-P-0001-01A | |
| Front rear axle center assembly mounting modified | Model 202.018/022/028/120/121/125 | BT35.31-P-0001-01B |
| Number | Designation | Model 129 | Model 140 | Model 170 | |
|---|---|---|---|---|---|
| BA35.10-P-1003-01A | Self-locking nut, rear axle differential at front to rear axle carrier | Nm | 45 | 45 | 50 |
| Number | Designation | Model 202 | Model 203 | Model 208 | |
|---|---|---|---|---|---|
| BA35.10-P-1003-01A | Self-locking nut, rear axle differential at front to rear axle carrier | Nm | 50 | 45 | 50 |
| Number | Designation | Model 209 | Model 210 | |
|---|---|---|---|---|
| BA35.10-P-1003-01A | Self-locking nut, rear axle differential at front to rear axle carrier | Nm | 43 | 45 |

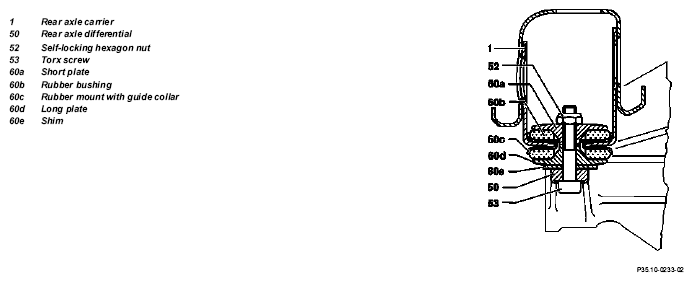

Illustrated on model 140
- Mount rubber bushing (60b) and short plate with 14 mm height (60a) above in the rear axle carrier (1).
- Mount rubber bushing with guide collar (60c) and long plate with 17 mm height (60d) below, pay attention to proper seating of bearing.
- Install appropriate shim (60e) between plate (60d) and rear axle center assembly (50).
- Replace self-locking hexagon nut (52), install rear axle center assembly (50) at rear axle carrier (1).
Installation for model 129
On vehicles with automatic transmission up to approx. 08/89 install short plate with 14 mm height (60a) above and long plate with 17 mm height (60d) below.
On vehicles with automatic transmission as of 09/89 and on vehicles with manual transmission, both plates (60a, 60d) have a height of 15 mm.
Install appropriate shim (60e with notches) at rear axle center assembly (50).

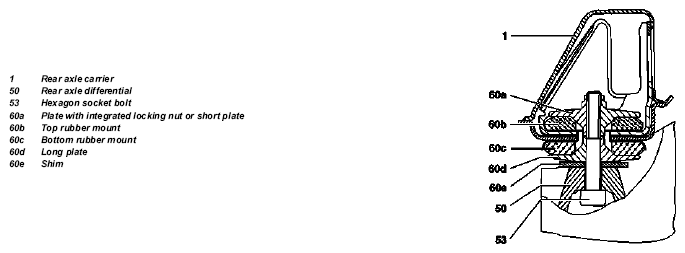

Installation, model 170, 202, 203, 208, 209
Replace self-locking hexagon nut or plate with integrated locking nut (60a).
1 or 2 shims (60e) can be installed for the rear axle center assembly depending on the version.

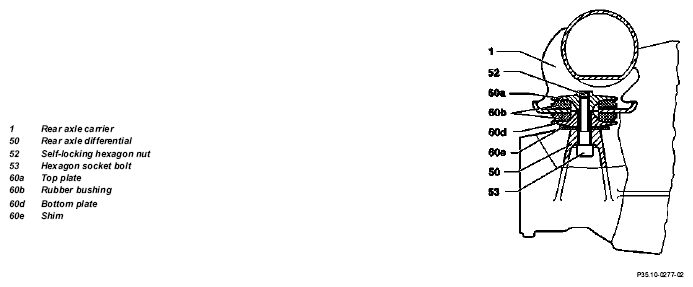

Shows model 210
