Features, installation survey for rear axle center assemblies - GF35.31-P-1000-01B

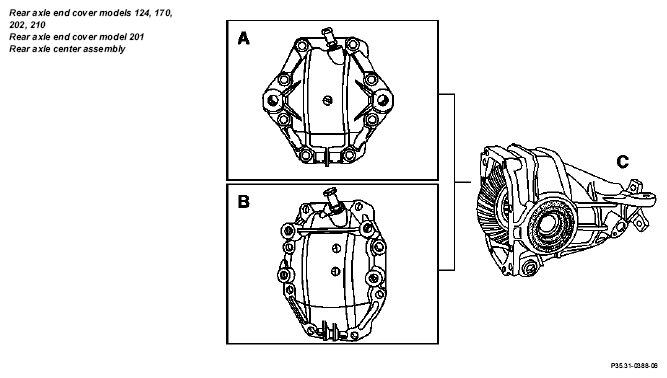

Rear axle center assembly with 168 mm dia. crown wheel
Features
- Breather on rear axle end cover
- Without side bearing cover
- Connecting flanges with and without annular dimensions, with hole circle dia. of 86 mm
- Hole circle dia. of joint flange 80 or 90 mm
- With and without bore for ABS speed sensor connection
ASSIGNMENT OF MODEL/RATIO
| Model/version | Special equipment code, national version | Transmission version | Rear axle center assembly | ||
|---|---|---|---|---|---|
| Ratio | Number of teeth | Number of teeth ABS gear on drive pinion | |||
| 124.020/021 | Taxi version up to 31.10.88 | 3.42 (up to 03/89) | 41:12 | 28 | |
| 3.46 (as of 04/89) | 45:13 | 28 | |||
| 124.080/081 | Taxi version up to 31.10.88 | 3.64 | 40:11 | 26 | |
| 124.104 up to 30.04.94 | Manual | 3.91 | 43:11 | 24 | |
| Automatic | 3.46 | 45:13 | 28 | ||
| 124.105/106 | Manual | 3.91 | 43:11 | 24 | |
| Automatic | 3.42 (up to 03/89) | 41:12 | 28 | ||
| 3.46 (as of 04/89) | 45:13 | 28 | |||
| 124.107 up to 30.04.94 | Manual | 3.91 | 43:11 | 24 | |
| Automatic | 3.46 | 45:13 | 28 | ||
| 124.120 | Taxi version up to 31.10.88 | 4-speed manual | 3.42 (up to 03/89) | 41:12 | 28 |
| 5-speed manual | 3.91 (as of 11/85) | 43:11 | 24 | ||
| Automatic | 3.46 (as of 04/89) | 45:13 | 28 | ||
| 124.125/126 | Taxi version up to 31.10.88 | Manual | 3.64 (as of 09/85) | 40:11 | 26 |
| Automatic | 3.07 | 43:14 | 31 | ||
| 124.180 | Taxi version up to 31.10.88 | Manual | 3.91 | 43:11 | 24 |
| Automatic | 3.64 | 40:11 | 26 | ||
| 124.185 | Taxi version up to 31.10.88 | Manual | 3.91 | 43:11 | 24 |
| Automatic | 3.23 | 42:13 | 30 | ||
| 124.186 up to 28.02.94 | Taxi version up to 31.10.88 | Manual | 3.91 | 43:11 | 24 |
| Automatic | 3.23 | 42:13 | 30 | ||
| 170.435 | 3.91 | 43:11 | 24 | ||
| 201.018 | Taxi version up to 31.10.88 | 4-speed manual | 3.46 | 45:13 | 28 |
| 5-speed manual | 3.64 | 40:11 | 26 | ||
| Automatic | 3.46 | 45:13 | 28 | ||
| 201.023 | Taxi version up to 31.10.88 | 3.23 (up to 08/89) | 42:13 | 30 | |
| 3.46 (as of 09/89) | 45:13 | 28 | |||
| 201.024 | Taxi version up to 31.10.88 | 4-speed manual | 3.23 | 42:13 | 30 |
| 5-speed manual | 3.23 (up to 08/88) | 42:13 | 30 | ||
| 3.46 (as of 09/88) | 45:13 | 28 | |||
| Automatic | 3.23 | 42:13 | 30 | ||
| 201.122 | Taxi version up to 31.10.88 | 4-speed manual | 3.23 | 42:13 | 30 |
| 5-speed manual | 3.23 (up to 10/85) | 42:13 | 30 | ||
| 3.91 (as of 11/85) | 43:11 | 24 | |||
| Automatic | 3.23 | 42:13 | 30 | ||
| 201.126 | Taxi version up to 31.10.88 | Manual | 3.64 | 40:11 | 26 |
| Automatic | 3.07 | 43:14 | 31 | ||
| 202.018 | Manual | 3.91 | 43:11 | 24 | |
| 4-speed automatic | 3.23 | 42:13 | 30 | ||
| 5-speed automatic | 3.64 | 40:11 | 26 | ||
| Manual | 3.64 | 40:11 | 26 | ||
| 202.078 | Manual | 3.91 | 43:11 | 24 | |
| 5-speed automatic | 3.64 | 40:11 | 26 | ||
| Manual | 3.64 | 40:11 | 26 | ||
| 202.120 | Manual | 3.91 | 43:11 | 24 | |
| 4-speed automatic | 3.23 | 42:13 | 30 | ||
| 202.121 | Manual | 3.91 | 43:11 | 24 | |
| 4-speed automatic | 3.23 | 42:13 | 30 | ||
| 5-speed automatic | 3.64 | 40:11 | 26 | ||
| Manual | 3.64 | 40:11 | 26 | ||
| 202.122 | Manual | 3.91 | 43:11 | 24 | |
| 5-speed automatic | 3.64 | 40:11 | 26 | ||
| 202.125 | Manual | 3.64 | 40:11 | 26 | |
| 4-speed automatic | 3.07 | 43:14 | 31 | ||
| 202.180 | Manual | 3.91 | 43:11 | 24 | |
| 5-speed automatic | 3.64 | 40:11 | 26 | ||
| 202.182 | Manual | 3.91 | 43:11 | 24 | |
| 5-speed automatic | 3.64 | 40:11 | 26 | ||
| Manual | 3.64 | 40:11 | 26 | ||
| 210.003 | Manual | 3.91 | 43:11 | - | |
| 5-speed automatic | 3.64 | 40:11 | - | ||
| 210.004 | Manual | 3.64 | 40:11 | - | |
| 4-speed automatic | 3.23 | 42:13 | - | ||
| 5-speed automatic | 3.64 | 40:11 | - | ||
