Features and summary of installed parts for rear axle center assembly - GF35.31-P-1000-01I

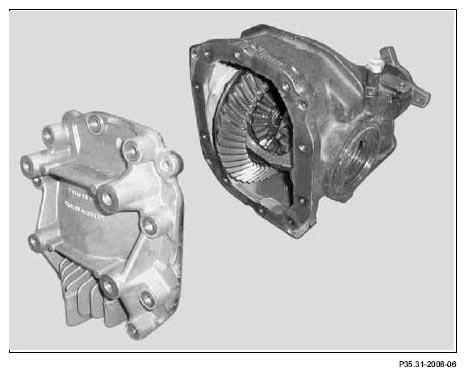

Shown on model 220
Features
- Right breather at rear axle housing
- Ring gear dia. 210 mm, without side bearing cap
- Connecting flange with hole circle dia. of 102 mm
- Hole circle dia. of joint flange on drive pinion 110 mm, as 3 or 4-arm joint flange
Model/gear ratio assignment
| Model/version | Special equipment code, national version | Transmission version | Rear axle center assembly | |
|---|---|---|---|---|
| Gear ratio | Number of teeth | |||
| 129.068 | 2.65 | 45:17 | ||
| 129.076 as of 01.02.98 | except Gulf states | 2.65 | 45:17 | |
| 129.076 as of 01.02.98 | Gulf states | 2.24 | 47:21 | |
| 208.374 | 2.82 | 48:17 | ||
| 210.070/074/270/274 as of 01.02.98 | 2.82 | 48:17 | ||
| 210.070 | Special protection B06 | 3.27 | 49:15 | |
| 210.016 | manual | 2.65 | 45:17 | |
| automatic | 2.82 | 48:17 | ||
| 210.026/226 | 2.65 | 45:17 | ||
| 210.216 | manual | 2.65 | 45:17 | |
| automatic | 2.82 | 48:17 | ||
| 210.616 | 3.27 | 49:15 | ||
| 215.375/378 | 2.82 | 48:17 | ||
| 220.026 | 2.65 | 45:17 | ||
| 220.028/128 | 2,47 | 47:19 | ||
| 220.070/075/170/175/178 | 2,82 | 48:17 | ||
