Remove and install complete exhaust system - AR49.10-P-7000I

ENGINE 604.910 /915, 605.910 /960 in MODEL 202

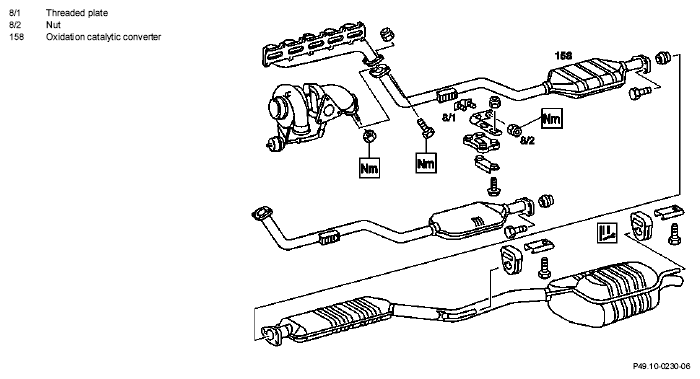

Fig 1: Identifying Complete Exhaust System Remove/Install Components - Engine 604.910 /915, 605.910 /960 In Model 202

	Remove, Install
1	Remove/install bottom parts of noise encapsulation		AR94.30-P-5300A
2	Exhaust manifold flange connection and front exhaust pipes	install not under tension	*BA14.10-P-1002-01A
3	Turbocharger flange connection and front exhaust pipes		*BA09.40-P-1001-01A
4	Nuts (8/2) exhaust bracket to tapping plate on front exhaust pipe	replace	*BA49.10-P-1001-01B
5	Support for exhaust bracket to transmission		*BA49.10-P-1002-01B
	Hooked wrench for rubber mount		*WH58.30-Z-1001-19A

EXHAUST MANIFOLD

Number	Designation		Engine 604 605 606.91/961/962
BA14.10-P-1002-01A	Exhaust manifold flange connection and front exhaust pipes	NM	25

TURBOCHARGER

Number	Designation		Engines 605.960/962
BA09.40-P-1001-01A	Screw for the flange connection of the turbocharger/front exhaust pipe	NM	20

EXHAUST SYSTEM

Number	Designation		Engines 604, 605, 606 except 606.964
BA49.10-P-1001-01B	Nut, exhaust bracket to tapping plate on front exhaust pipe	NM	20
BA49.10-P-1002-01B	Support for exhaust bracket to transmission	NM	20

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-19A	Hook wrench, Firma Hazet
