Remove and install complete exhaust system - AR49.10-P-7000HB

ENGINE 611.960 in MODEL 202.133 /134 /193 /194

ENGINE 611.961 in MODEL 210.006 /007 /206 /606

ENGINE 612.961 in MODEL 210.016 /216 /616

ENGINE 613.961 in MODEL 210.026 /226

Model 202:

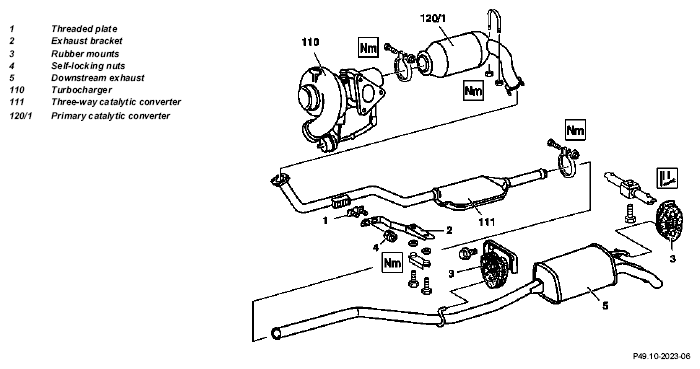

Fig 1: Identifying Complete Exhaust System Remove/Install Components - Model 202

Model 210/Engine 611.961:

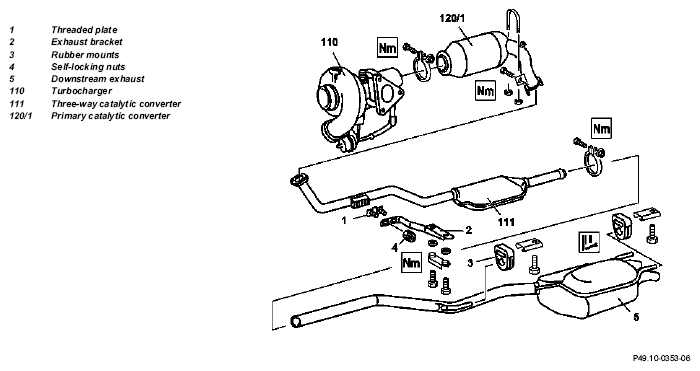

Fig 2: Identifying Complete Exhaust System Remove/Install Components - Model 210/Engine 611.961

	Remove, Install
1	Remove bottom section of sound-proofing capsule	Model 202	AR94.30-P-5300A
		Model 210	AR94.30-P-5300AB
2	Remove pre-catalytic converter (120/1)	Installation:  Install new self-locking nuts.
		Model 202 with Engine 611.960	AR49.10-P-5510A
		Model 210 with Engine 611.961	AR49.10-P-5510B
		Model 210 with Engine 612.961, 613.961	AR49.10-P-5510C
3	Detach bracket (2) for catalytic converter (111) from transmission		*BA49.10-P-1004-01E
4	Take off exhaust system	Installation:  Install exhaust system free of tension.
		Hooked wrench for rubber mount	*WH58.30-Z-1001-19A
5	Install in the reverse order
