Remove and install crank window in rear door - AR72.12-P-1910E

MODEL 202

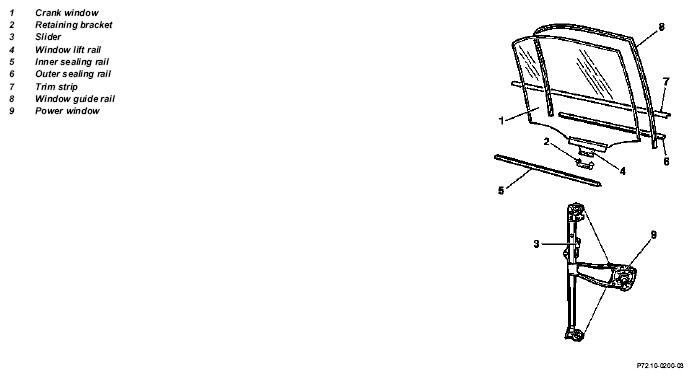

Fig 1: Identifying Crank Window In Rear Door Remove/Install Components - Model 202

MODIFICATION NOTES

10.4.95

Grease sliding jaws

Step no. 7

	Remove/install
1	Remove window crank	Window open	AR72.10-P-1100GV
2	Remove door liner on rear door		AR72.12-P-1010E
3	Remove foil on inner door panel in lower area	Installation:  Before installing foil check crank window for easy motion.
4	Remove inner sealing rail		AR72.10-P-1600E
5	Remove outer sealing rail		AR72.10-P-1700E
6	Unclip retaining bracket (2) on window lift rail (4)
7	Extend crank window (1) toward rear out of slider (3) together with window lift rail (4) and set down inside door	Installation:  Grease slider and guide rail with multi-purpose paste	*BR00.45-Z-1009-06A
8	Remove window guide rail (8)	Installation:  Apply soap solution.
9	Remove stationary window in rear door	Remove only window stay.	AR72.12-P-1970E
10	Remove crank window (1) upward out of window shaft
11	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51 10
