Removing and installing instrument cluster housing - AR54.30-P-6031EA

MODEL 202, 208, 210

Models 202, 210

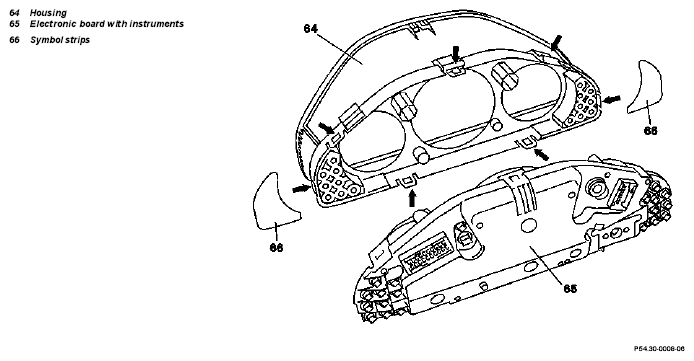

Fig 1: Identifying Instrument Cluster Housing Components - Models 202, 210

Model 208

Fig 2: Identifying Instrument Cluster Housing Components - Models 208

	Removal, installation
1	Disconnect ground lead from battery	On model 210 insulate the ground lead with cable terminal to prevent unintentional contact between disconnected ground lead and ground point W10	AR54.10-P-0003A
2	Remove instrument cluster		AR54.30-P-6015EA
3	Unclip retaining lugs (arrows)	Installation:  Retaining lugs must catch completely
4.1	Separate housing (64) from electronic board with instruments (65)	Installation:  On model 202 as of 08/95 ensure that reset knob for trip odometer and adjustment knob for electronic clock are properly positioned.
4.2	Separate housing (64) from electronic board with instruments (65)	Installation:  On model 208 ensure correct seat of rubber inserts (62)
5	Remove symbol strips (66)	On model 202 up to 08/95 pull symbol strips out to side On model 202 as of 09/95, model and model 210 pull symbol strips out toward bottom On model 208 unclip plastic insert (63) at bottom of instrument cluster housing, pull back slightly and remove symbol strips downward. Installation:  When replacing symbol strips pay attention to vehicle equipment
6	Reinstall in opposite order
