Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474F
MODEL 129

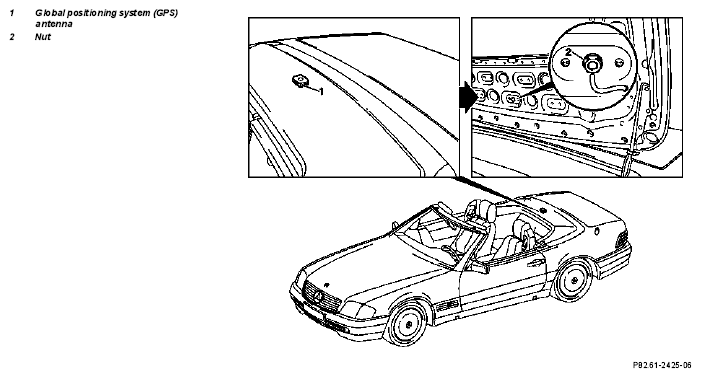

Antenna on soft top compartment
| Removal, installation | |||
| 1 | Extend roof mechanism until soft top compartment cover is upright | ||
| 2 | Disconnect global positioning system (GPS) antenna connector from global positioning system (GPS) antenna (1) | ||
| 3 | Unscrew nut (2) and remove global positioning system (GPS) antenna | ||
| 4 | Install in opposite order |
