Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474D
MODEL 129 as of 1.1.98 with CODE (351) Auto-pilot system (APS)
MODEL 129 with retrofitted auto-pilot system (APS)
| Removal, installation | |||
| 1 | Remove inner covering on trunk lid | ||
| 2 | Expose antenna lead | ||

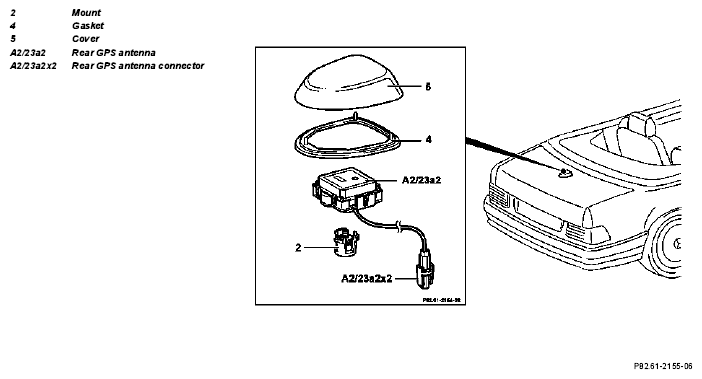

| 3 | Disconnect rear GPS antenna connector (A2/23a2x2) | ||
| 4 | Unscrew mount | ||
| 5 | Detach felt strips (arrows) and cable straps if applicable | ||
| 6 | Pull off rear GPS antenna (A2/23a2) | ||
| 7 | Install in opposite order |
