Removing and installing CTEL transmitter and receiver - AR82.70-P-8911B
MODEL 129 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B)

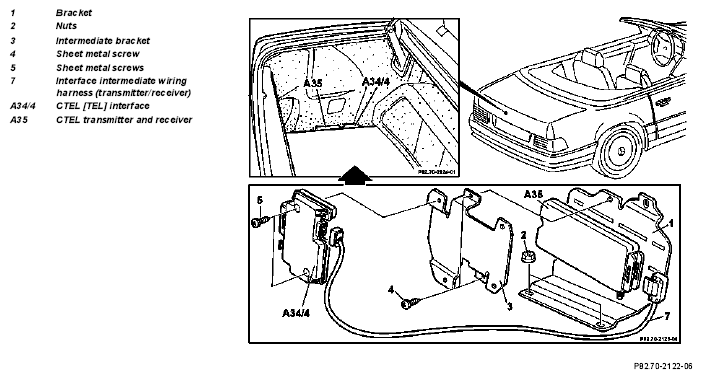

| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground cable of battery | ||
| 3 | Remove side cover on left side of trunk | ||
| 4 | Unscrew nuts (2) | ||
| 5 | Carefully lift bracket (1) with control modules out of wheelhouse recess | ||
| 6 | Release connector from CTEL transmitter and receiver (A35) and disconnect | ||
| 7 | Disconnect antenna lead from CTEL transmitter and receiver (A35) | ||
| 8 | Unscrew sheet metal screw (4) | ||
| 9 | Pull out CTEL transmitter and receiver (A35) | ||
| 10 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
