Removing and installing bulb for fog lamp - AR82.10-P-1825A

MODEL 129

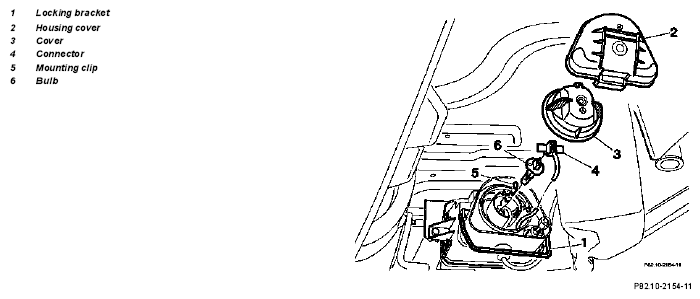

Fig 1: Identifying Bulb For Fog Lamp

	Removing, installing
1	Remove bottom wheelhouse paneling
2.1	Fold up locking bracket (1) and remove housing cover (2)	Only up to production date 08/95.
3	Remove cover (3)	For this purpose turn cover to left.
4	Disconnect connector (4) from bulb (6)
5	Open mounting clip (5) and remove bulb (6)	Do not touch bulb with bare fingers, use grease-free soft rag. Observe correct installation position.
6	Install in the reverse order
7	Carry out operational check
