Remove/install comfort/sport switch - AR32.32-P-0517SL
MODEL 129
| Remove/install | |||
| 1 | Remove cover on shift lever | ra68001290230x | |

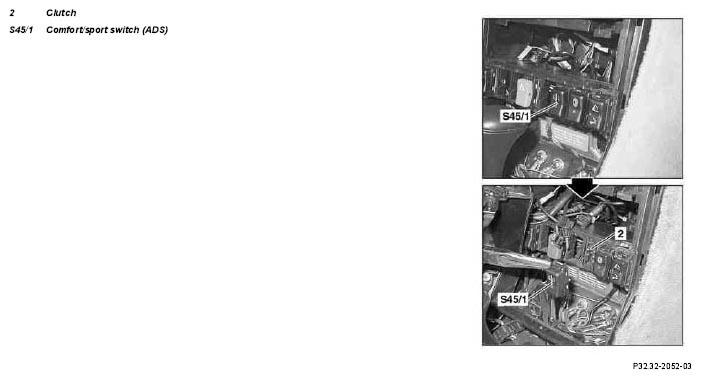

| 2 | Remove ADS comfort/sport switch (S45/1) | ||
| 3.1 | Remove coupling (2) and change pin assignment | In the event of a change to the control unit version and replacement of the entire ADS wiring harness. | AR32.32-P-0505-17SL |
| 4 | Install in the reverse order |
