High-pressure stretch hose installed in oil circuit (ADS) - BT32.32-P-0001-01A

Model 129

MODEL CODE (216c) adaptive damping system (ADSII) with electronic level control

129 as of 1.12.96 with

Since 12/96 a high-pressure stretch hose has been installed in the oil circuit of the rear axle level control in order to dampen pressure peaks.

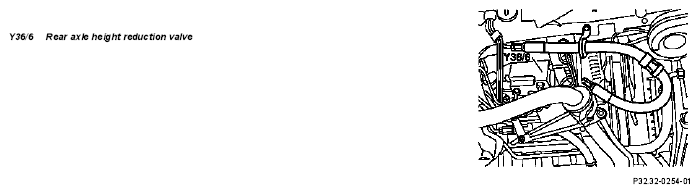

Fig 1: Identifying Rear Axle Height Reduction Valve
G04684889
