Removing and installing automatic transmission oil cooler - AR27.55-P-1000A
TRANSMISSION 722.608 in MODEL 210.025 with ENGINE 606.962 with CODE (580) Air conditioning or Tempmatic for USA with CODE (581a) Air conditioning (Automatic) with trailer towing device
TRANSMISSION 722.608 in MODEL 210.225 with ENGINE 606.962 with CODE (580) Air conditioning or Tempmatic for USA with CODE (581a) Air conditioning (Automatic) with trailer towing device
Modification notes
| 24.3.00 | Specification changed from 20 Nm to 25 Nm | Value modified in BA27.55-P-1001-01A for transmission 722.6 | *BA27.55-P-1001-01A |
| Removal/installation | |||
| Pay attention to cleanliness with all work on the automatic transmission |
|||
| 1 | Remove bottom engine compartment paneling | AR61.20-P-1105AB | |
| 2 | Remove right front fender liner | ||

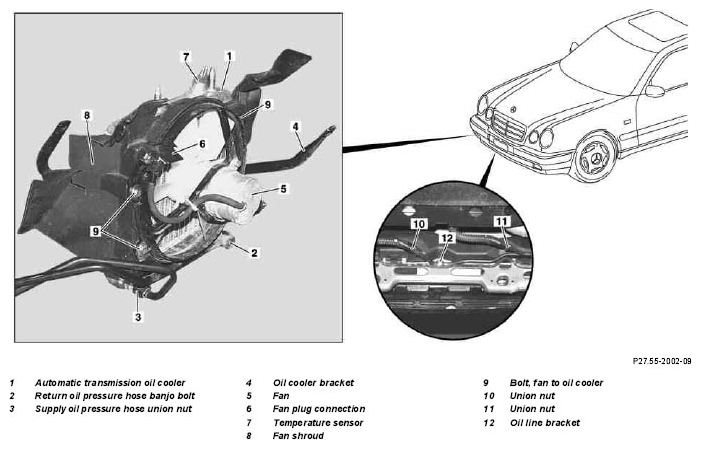

| 3 | Unscrew bolt of automatic transmission oil cooler bracket (4) | ||
| 4 | Remove charge air pipe from charge air cooler | ||
| 5 | Seal off union nuts of oil pressure lines at automatic transmission oil cooler lines (10, 11) | ||
| *BA27.55-P-1001-01A | |||
| 6 | Unscrew return line bracket (12) at water cooler | ||
| 7 | Disconnect fan (6) and temperature sensor (7) plug connections | ||
| 8 | Remove automatic transmission oil cooler (1) completely | ||

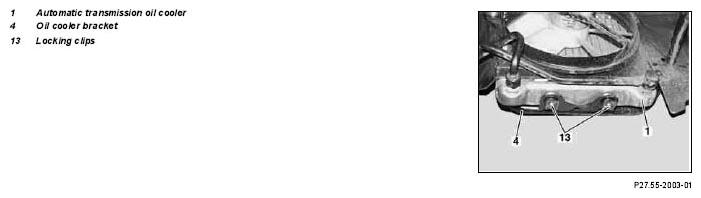

| 9 | Pull off locking clips (13) and remove bracket (4) | ||
| 10 | Unscrew fan bolts (5) at automatic transmission oil cooler | ||
| 11 | Remove fan (5) and fan shroud | ||
| 12 | Close off oil lines (2, 3) at oil cooler (1) | *BA27.55-P-1001-01A | |
| *BA27.55-P-1003-01A | |||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Check transmission oil level and correct if necessary | AR27.00-P-0101A |
| Number | Designation | Transmission 722.6 | |
|---|---|---|---|
| BA27.55-P-1001-01A | Union nut, transmission oil line to cooler | Nm | 25 |
| BA27.55-P-1003-01A | Banjo bolt of ATF line to oil cooler | Nm | 25 |
