Measuring front axle carrier (removed) - AR40.30-P-0450B

MODEL 210

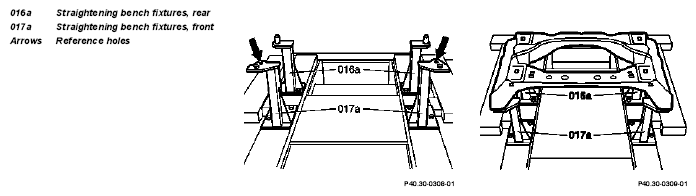

Fig 1: Measuring Front Axle Carrier

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove, install front axle	Model 210 except 210.08/28	AR33.10-P-0100B
		Models 210.08/28	AR33.10-P-0100D
	Measuring
2	Set up Celette straightening bench modular members	See set-up diagram for Celette straightening bench.
3	Insert checking fixtures (see set-up diagram) in the mounting bores of the Celette straightening bench and secure	We recommend measuring the front axle carrier on the vehicle concerned before or after work on the straightening bench.
4	Place front axle carrier assembly (with front axle halves and rubber mounts) or as a single part on the checking fixtures rotated through 180° as illustrated	The adjusting pins of the front axle carrier must be inserted into the reference holes (arrows).	*BE40.30-P-1001-08A

Test values for front axle carrier

Number	Designation		Model 210
BE40.30-P-1001-08A	Maximum distance between the contact surfaces of the front axle carrier and checking fixture	mm	5
