Checking camber, assigning table value - AR40.20-P-0322-03C
Models 210.00/01/02/03/04/05/06/07/20/21/22/23/24/26/27

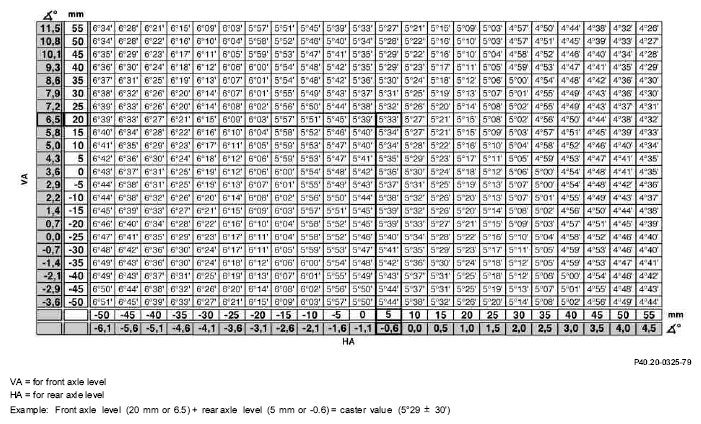

Measure front and rear axle level and obtain the front axle caster value (measured with wheels turned 20°) from the table, tolerance ± 30', max. difference between left and right 30'.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
