Supporting front axle carrier with pit hoist or assembly hoist - AR33.10-P-0100-03B

SPECIAL TOOLUse assembly attachment

Fig 1: Identifying Assembly Attachment (210 589 01 62 00)
G04632346Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Re-install rear support plate depending on the model.

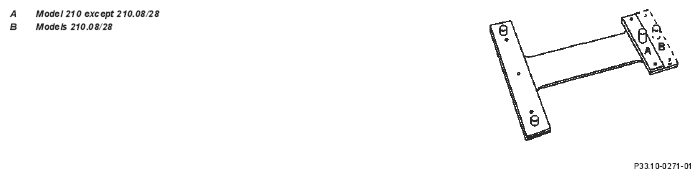

    Fig 2: Identifying Rear Support Plate
    G04632347Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Detach jack socket and install assembly attachment (070) with journal on front axle carrier.
    Fig 3: Identifying Jack Socket With Journal On Front Axle Carrier
    G04632348Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
