Electric seat adjustment (ESA), location of components - GF91.29-P-0004-01AA

Location of components

Illustrated on model 210 (LHS)

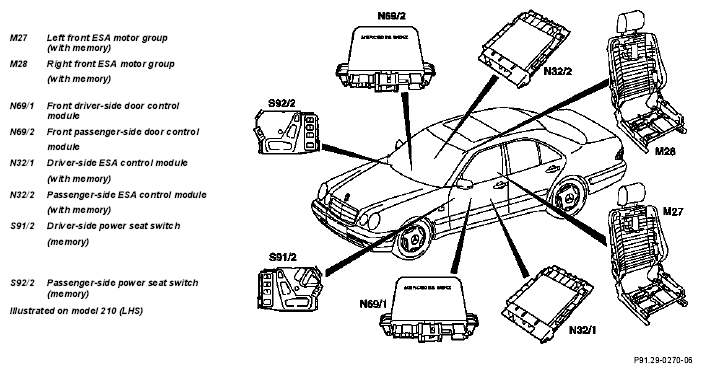

Fig 1: Identifying Semi-Electric Seat Adjustment Components (Illustrated On Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

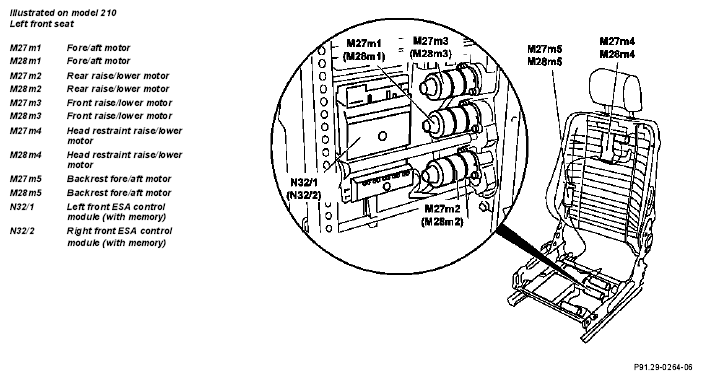

Fig 2: Identifying Semi-Electric Seat Adjustment Components (Illustrated On Model 210 Left Front Seat)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location of connectors on control module

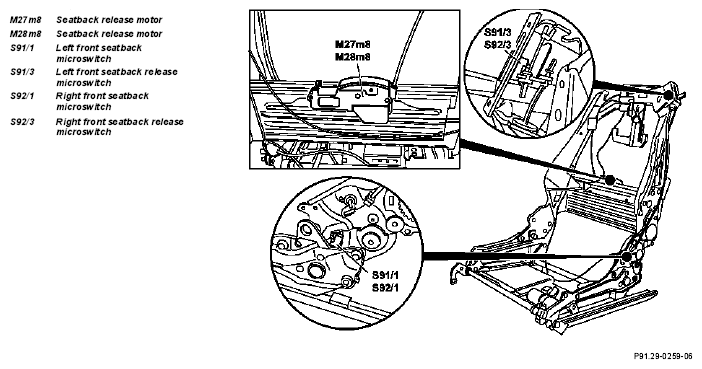

Fig 3: Identifying Semi-Electric Seat Adjustment Components (Illustrated On Model 208)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 208 only

Fig 4: Identifying Semi-Electric Seat Adjustment Components (Model 208 Only)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Semi-Electric Seat Adjustment Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
