Removing and installing water collector - AR83.25-P-1402F

MODEL 210

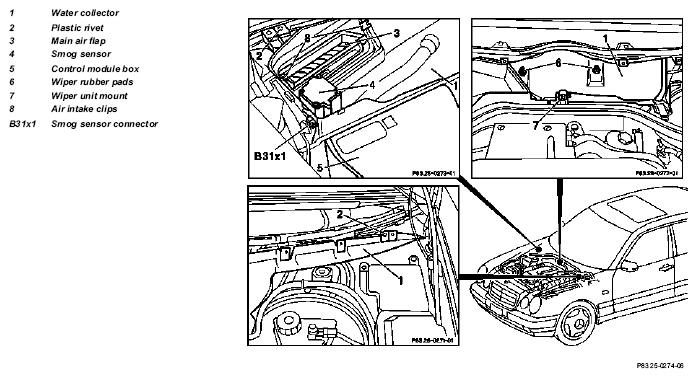

Fig 1: Identifying Water Collector Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Water Collector Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove left air inlet		AR83.25-P-1403F
2	Remove right air inlet		AR83.25-P-1404F
3	Remove windshield wiper		AR82.30-P-6400F
4	Remove rubber pads (6)
5	Remove windshield wiper mount (7) Unscrew screw
6	Unclip clips (8)
7	Remove plastic rivet (2)
8	Disconnect connector for smog sensor (B31x1)	Vehicles with air conditioning (automatic) (code 581)
9	Disconnect ground lead on battery	Insulate terminal on ground lead to prevent unintentional contact between connected ground lead and ground point W10	AR54.10-P-0003A
10	Unscrew screws (9) and remove cover (10)	Installation:  Ensure that gasket for cover is properly seated
11	Remove control module N10-1 from control module box		AR54.20-P-1257-01A
12	Loosen clamping screw (12)
13	Unscrew screws (11) and move upper section of control module box (5) toward front
14	Remove water collector (1)	When removing and installing the water collector (1) ensure that the main air flap is not damaged
15	Reinstall in opposite order
