Removing and installing auxiliary fan - AR83.30-P-5600F
MODEL 210 with CODE (580) Air conditioning or, for USA, Tempmatic with CODE (581a) Automatic air conditioning
| Removal, installation | |||

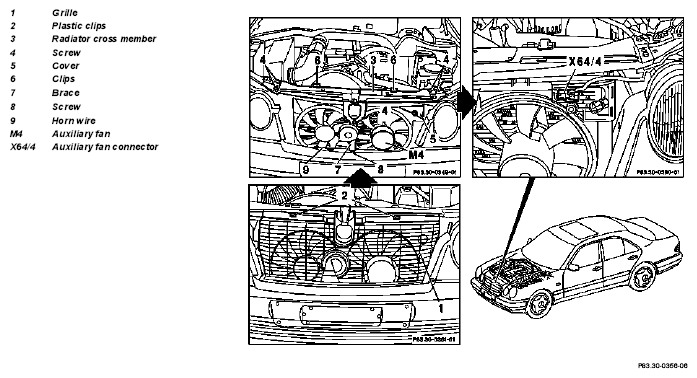

| 1 | Turn 2 plastic clips (2) 90 ° and remove grille (1) | ||
| 2 | Unclip cover (5) and remove | ||
| 3 | Disconnect auxiliary fan connector X64/4 | ||
| 4 | Pull off clips (6) | ||
| 5 | Unscrew screws (4) and remove radiator cross member | *BA83.30-P-1004-01A | |
| 6 | Lay engine hood pull cable to rear | ||
| 7 | Unscrew screw (8) and hang brace (7) with horn to side; for this purpose unclip electric wire (9) on cross member | *BA83.30-P-1004-01A | |
| 8 | Unscrew 2 screws (11) and remove auxiliary fan | ||

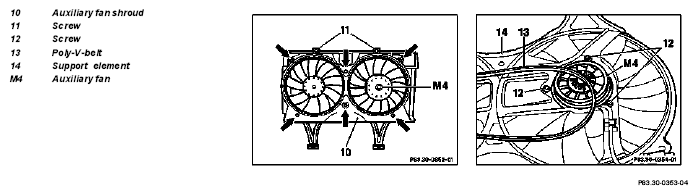

| 9 | Unclip 6 plastic clips (arrows) and remove fan shroud (10) | ||
| 10 | Remove poly-V-belt (13) from fan motor M4 | ||
| 11 | Unscrew 3 screws (12) and remove fan motor M4 from support element (14) | ||
| 12 | Reinstall in opposite order |
| Number | Designation | Model 210 | |
|---|---|---|---|
| A83.30-P-1004-01A | Screw for radiator cross member and brace | Nm | 10 |
| Number | Designation | Model 129 | Model 140 | Model 168 up to 28.2.01 | Model 168 as of 1.3.01 | |
|---|---|---|---|---|---|---|
| BA83.30-P-1001-01A | Nut on expansion valve | Nm | 10 | 10 | 10 | 10 |
| BA83.30-P-1002-01A | Bolt for expansion valve | Nm | 8 | 8 | 8 | 8 |
| BA83.30-P-1003-01A | Lines to fluid reservoir | Nm | 17 | 17 | - | - |
| BA83.30-P-1004-01A | Bolt, upper frame crossmember and strut | Nm | 10 | - | - | - |
| BA83.30-P-1005-01A | Line, compressor to condenser | Nm | 22 | 22 | 22 | 22 |
| BA83.30-P-1006-01A | Line, condenser to receiver/drier | Nm | 17 | 17 | - | - |
| BA83.30-P-1007-01A | Refrigerant pressure sensor to receiver/drier | Nm | 12 | 12 | 12 | 12 |
| BA83.30-P-1008-01A | Refrigerant temperature sensor to fluid reservoir | Nm | 6 | 6 | 6 | 6 |
| BA83.30-P-1009-01A | High-pressure line to condenser | Nm | 33 | 33 | 33 | 33 |
| BA83.30-P-1010-01A | Suction line separation point to spring tower | Nm | 44 | - | 44 | 44 |
| BA83.30-P-1011-01A | Pressure and hot gas line to capacitor | Nm | - | - | - | - |
| BA83.30-P-1012-01A | Suction and hot gas line to compressor | Nm | - | - | - | - |
| BA83.30-P-1013-01A | Suction line separation point to rear air conditioning | Nm | - | - | - | - |
| BA83.30-P-1014-01A | Union nut, rear air conditioning solenoid valve | Nm | - | - | - | - |
| BA83.30-P-1015-01A | Threaded connection, suction line separation point | Nm | - | - | - | - |
| BA83.30-P-1016-01A | Pressure line to receiver/drier (to expansion valve) | Nm | - | - | 8 | 8 |
| BA83.30-P-1017-01A | Pressure line to receiver/drier (from condenser) | Nm | - | - | 17 | 8 |
| BA83.30-P-1018-01A | Intake line to refrigerant compressor | Nm | - | - | 22 | 22 |
| BA83.30-P-1019-01A | Pressure line to refrigerant compressor | Nm | - | - | 22 | 22 |
