Poly V-belt tensioning device as-built configuration - GF13.25-P-3200A

ENGINE 602.982, 604, 605, 606

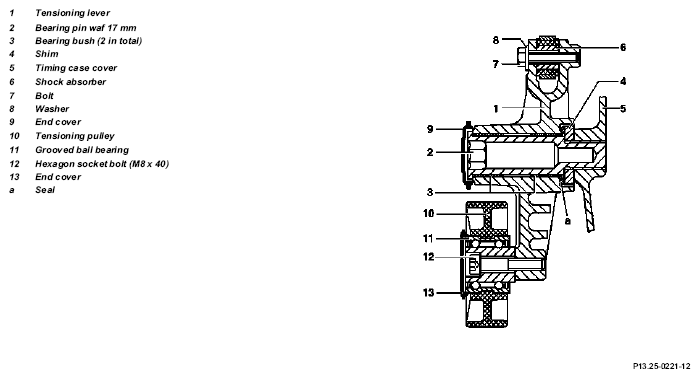

Fig 1: Identifying Poly V-Belt Tensioning Device As-Built Configuration Components

G04624265
