Section 9 (Air Bag Restraint System)
>>
Diagnostic Tests
>>
SRS & ETR Diagnosis Test 9.3-10.0
SRS & ETR Diagnosis Test 9.3-10.0
WARNING:
This page is about a different car, the 1997 Mercedes-Benz E420, 1997 Mercedes-Benz E320, and 1997 Mercedes-Benz E300. However, it is still accessible from the selected car via links, so may be relevant.

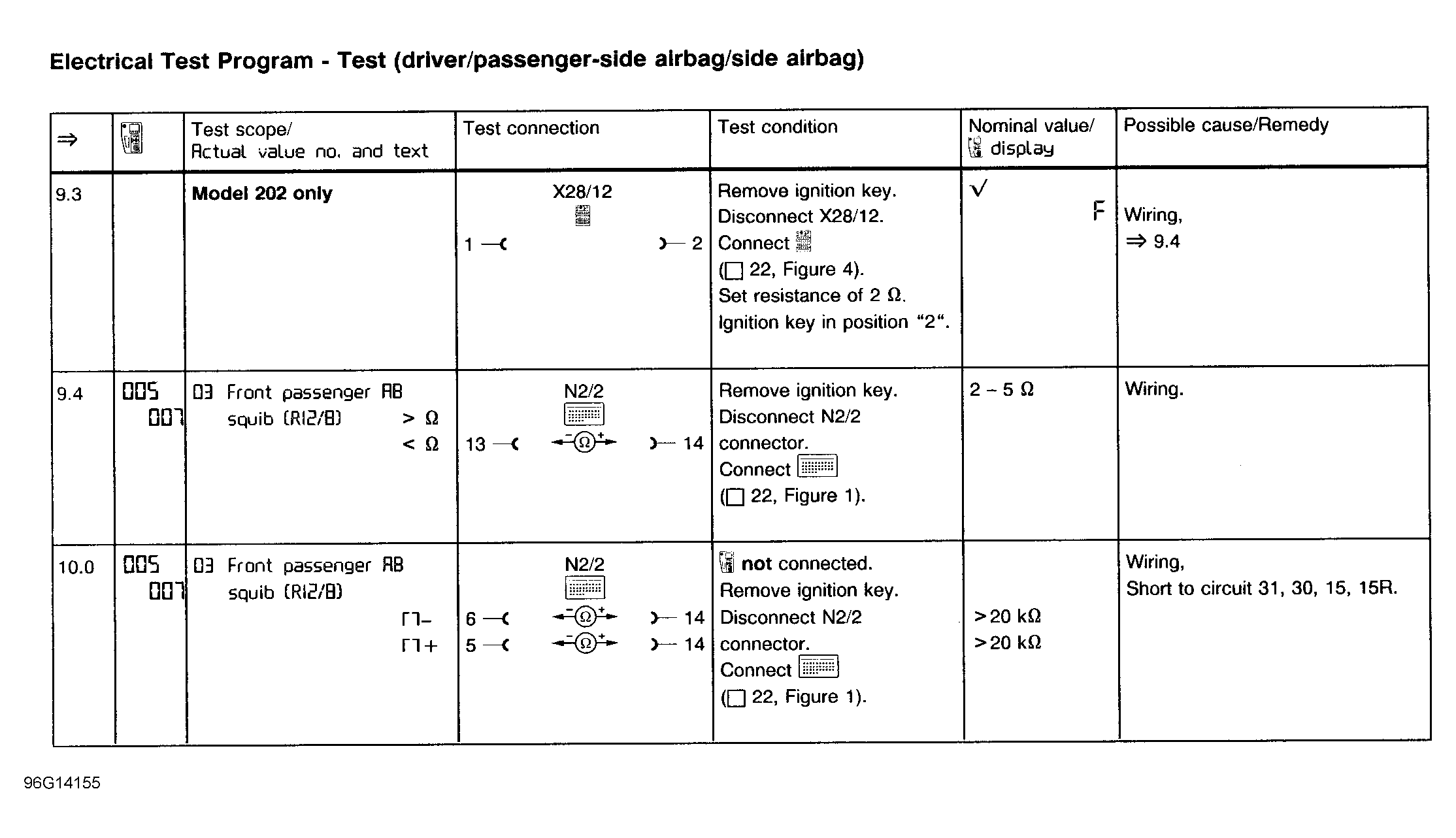

Fig 1: SRS & ETR Diagnosis Test 9.3-10.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
