Removing and installing injection pipes - AR07.12-P-9230H
ENGINE 604, 605.910 /912 /960 /962, 606.912 /961 /962 /964
Shown on engine 604
The retaining clips (56) must be installed as shown in the illustration in order to avoid pipe fractures. Injection pipes are connected in the firing order 1-3-4-2. Order is marked on plastic cover of distributor injection pump.

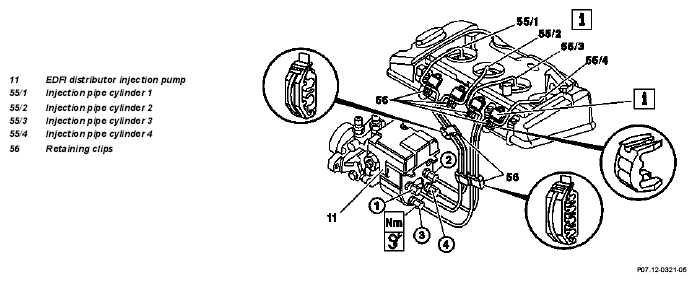

Fig 1: Identifying EDFI Distributor Injection Pump, Injection Pipe Cylinder (1,2,3,4) And Retaining Clips
Shown on engine 605
The retaining clips (56) must be installed as shown in the illustration in order to avoid pipe fractures.

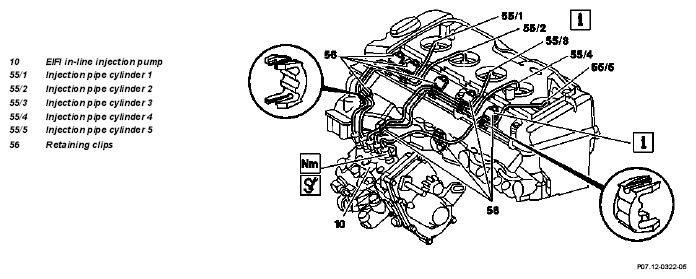

Fig 2: Identifying EIFI In-Line Injection Pump, Injection Pipe Cylinder (1,2,3,4,5) And Retaining Clips
Shown on engine 606
The retaining clips (56) must be installed as shown in the illustration in order to avoid pipe fractures.

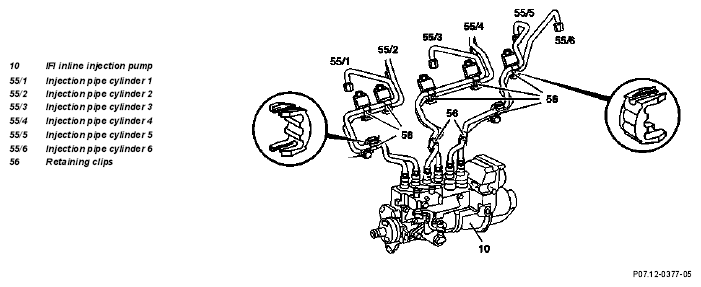

Fig 3: Identifying IFI In-Line Injection Pump, Injection Pipe Cylinder (1,2,3,4,5,6) And Retaining Clips
Modification notes
| 5.11.96 | Tightening torque for injection pipes increased from 18 Nm to 23 Nm | Step 6 | AR07.12-P-9230H |
| Removal, installation | |||
| 1 | Remove trim panel of cylinder head cover. | ||
| 2.1 | Remove intake manifold. | AR09.20-P-1310H | |
| 2.2 | Charge air distribution pipe | AR09.41-P-1310H | |
| Engine 606.961/962/964 | AR09.41-P-1310HA | ||
| 2.3 | Resonance intake manifold | AR09.20-P-1961H | |
| 3 | Release retaining clips (56). | Only if individual injection pipes are replaced. | |
| 4 | Unscrew bolts at injection pipe bracket. | ||
| *BA07.03-P-1004-01A | |||
| 5 | Unscrew union nut(s) at injection pump and injection nozzle(s). | Figure | |
| 6 | Remove injection pipes. | ||
| BA07.03-P-1001-01A | |||
| 7 | Install in the reverse order. |
| Number | Designation | Engine 604 | Engine 605 | Engine 606 | |
|---|---|---|---|---|---|
| BA07.03-P-1001-01A | Injection pipe | Nm | 23 | 23 | 23 |
| BA07.03-P-1004-01A | Bolts for attaching bracket of injection pipes | Nm | 10 | 10 | 10 |
