Mixture Formation - Self-Diagnostic System - 210 Chassis (Part 2)
>>
Self-Diagnostic System
>>
Starter signal, terminal 50 - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-41A
Starter signal, terminal 50 - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-41A

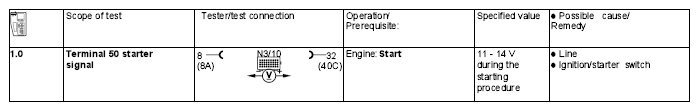

Fig 1: Starter Signal, Terminal 50 - Check Electrics - ME-SFI Fuel Injection System
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
