Right O sensor heating in front of the TWC - ME-SFI gasoline injection system - Testing electrical system - AD07.61-P-6000-13A

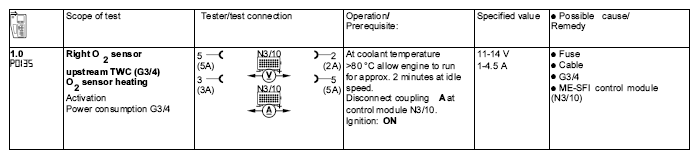

Fig 1: Right O2 Sensor Heating In Front Of TWC - ME-SFI Gasoline Injection System - Testing Electrical System
G04606053Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
