Pressure sensor - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-06B

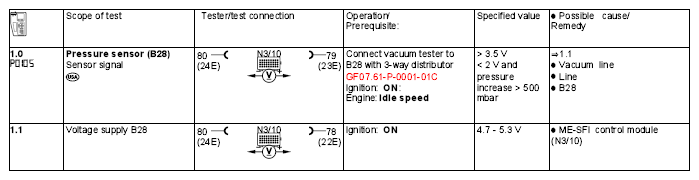

Fig 1: Pressure Sensor - Check Electrics - ME-SFI Fuel Injection System

G04624141

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
