ME-SFI control module, terminal 87 - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-02C

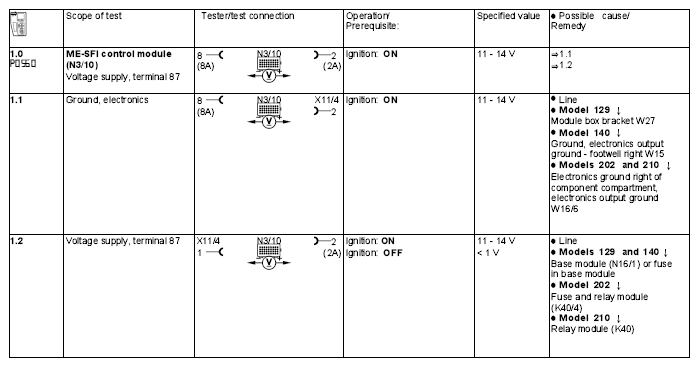

Fig 1: ME-SFI Control Module, Terminal 87 - Check Electrics - ME-SFI Fuel Injection System
G04624138Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
