Mixture Formation - Self-Diagnostic System - 210 Chassis (Part 2)
>>
Self-Diagnostic System
>>
ME-SFI control module terminal 87 - Check ME-SFI ignition system electrics - AD07.61-P-6001-02C
ME-SFI control module terminal 87 - Check ME-SFI ignition system electrics - AD07.61-P-6001-02C

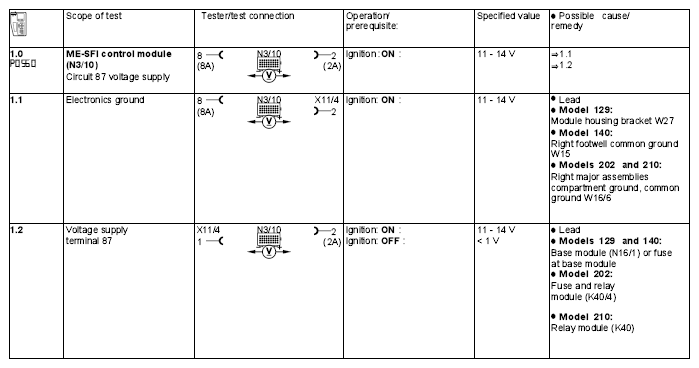

Fig 1: ME-SFI Control Module Terminal 87 - Check ME-SFI Ignition System Electrics
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
