Hot film air mass sensor - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-04C

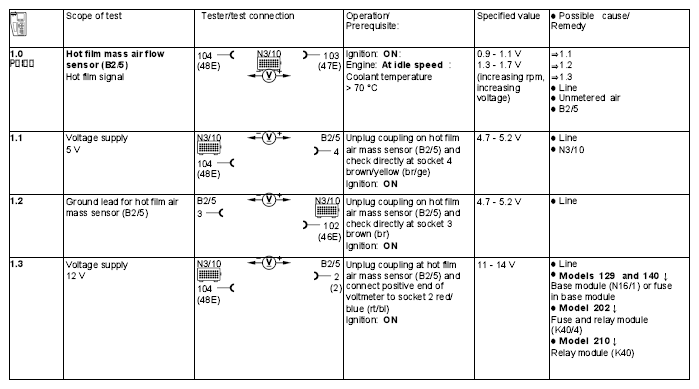

Fig 1: Hot Film Air Mass Sensor - Check Electrics - ME-SFI Fuel Injection System
G04624140Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
