Mixture Formation - Self-Diagnostic System - 210 Chassis (Part 2)
>>
Self-Diagnostic System
>>
Fuel pump relay - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-07C
Fuel pump relay - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-07C

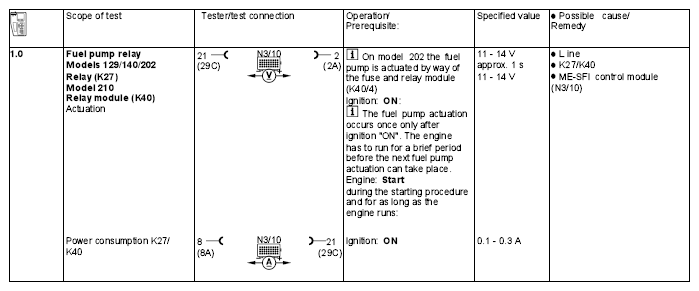

Fig 1: Fuel Pump Relay - Check Electrics - ME-SFI Fuel Injection System
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
