Cruise control pushbutton switch - Check ME-SFI cruise control electrics - AD07.61-P-6300-01A

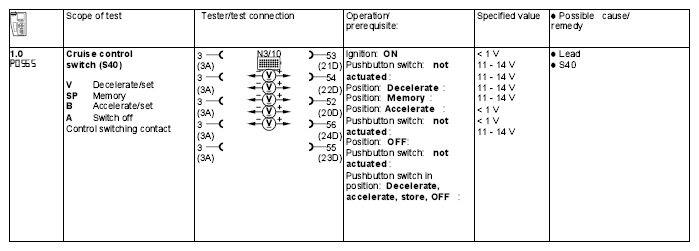

Fig 1: Cruise Control Pushbutton Switch - Check ME-SFI Cruise Control Electrics
G04624185Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
