CAN data bus - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-34B

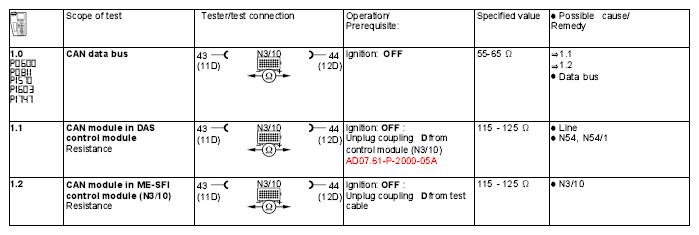

Fig 1: Can Data Bus - Check Electrics - ME-SFI Fuel Injection System

G04624159

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
