Mixture Formation - Self-Diagnostic System - 210 Chassis (Part 2)
>>
Self-Diagnostic System
>>
Air pump switchover valve - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-25B
Air pump switchover valve - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-25B
as of 07/97 and D3 low emission standard

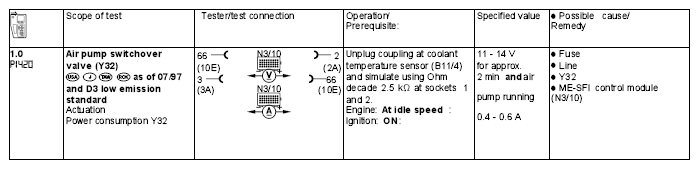

Fig 1: Air Pump Switchover Valve - Check Electrics - ME-SFI Fuel Injection System
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
