Signal images for ME-SFI ignition system - AD07.61-P-2000-07D

Signal from camshaft Hall sensor (B6/1)

Fig 1: Signal From Camshaft Hall Sensor - Waveform Graph

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

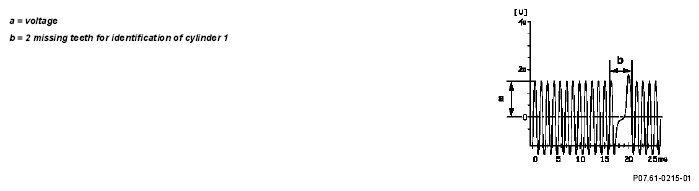

Crankshaft position sensor signal (L5), shown when idling

Fig 2: Crankshaft Position Sensor Signal - Waveform Graph

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

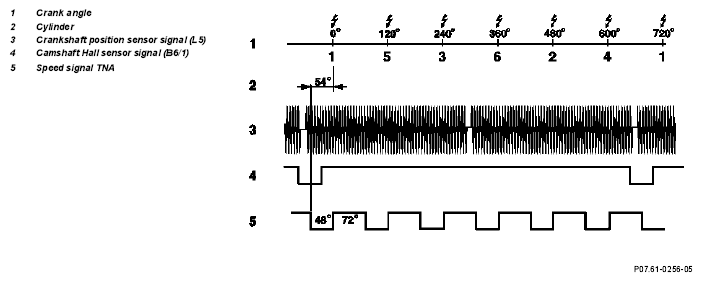

Signal assignment

Fig 3: Crankshaft Position Sensor Signal - Waveform Graph

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
