Coupling assignment for ME-SFI fuel injection and ignition system - AD07.61-P-2000-02C

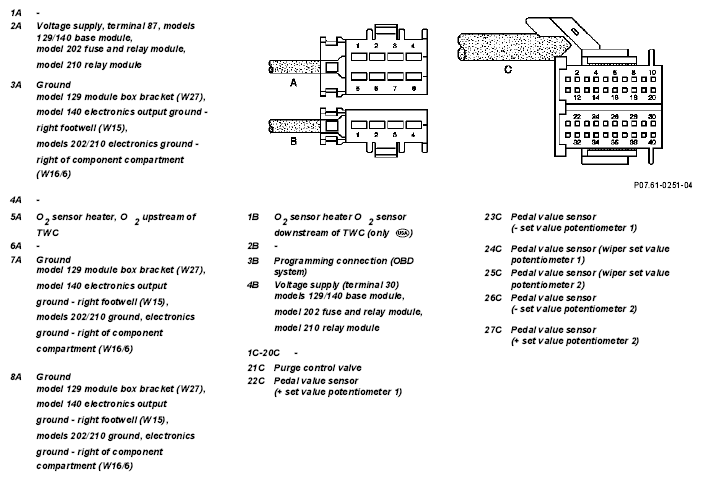

Fig 1: Identifying ME-SFI Fuel Injection And Ignition System Pinouts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

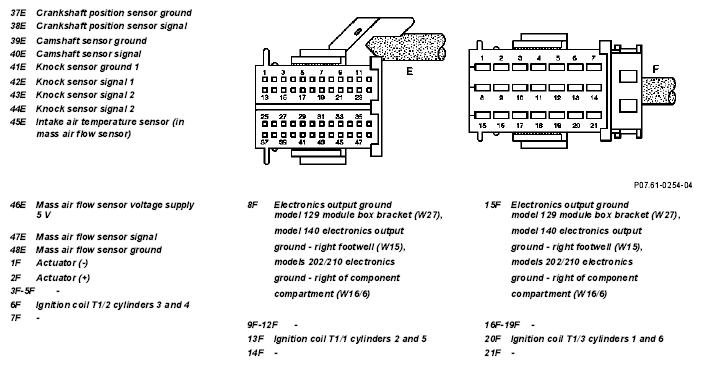

Fig 2: Identifying ME-SFI Fuel Injection And Ignition System Pinouts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

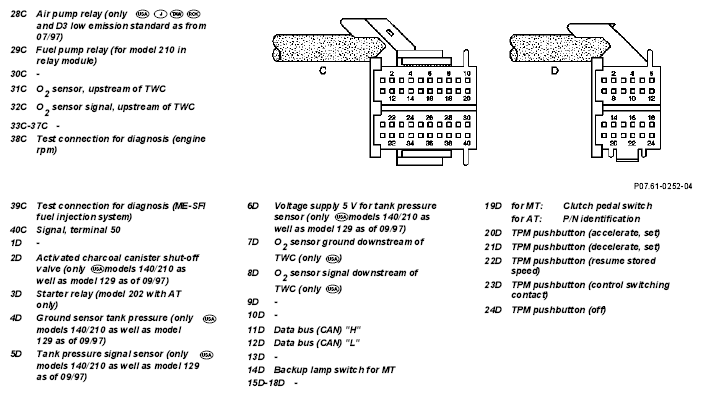

Fig 3: Identifying ME-SFI Fuel Injection And Ignition System Pinouts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

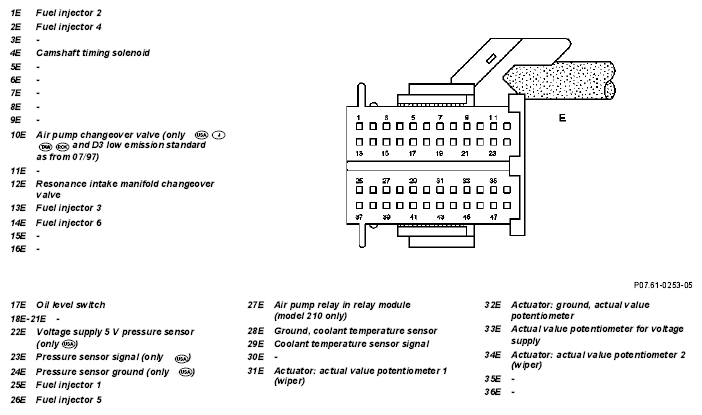

Fig 4: Identifying ME-SFI Fuel Injection And Ignition System Pinouts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
