Connect socket box for testing ME-SFI fuel pump - AD07.61-P-2200-02C

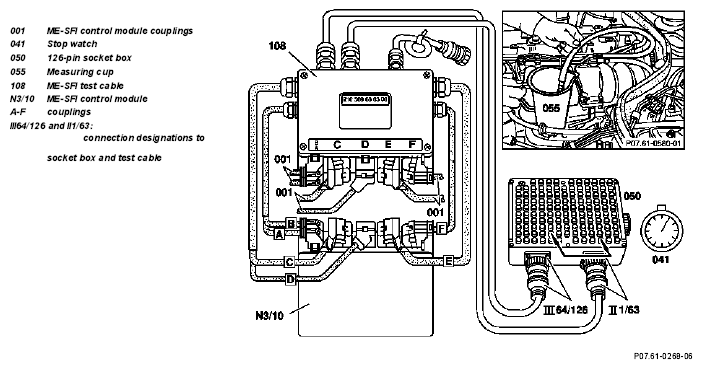

Connection schematic for testing delivery rate

Fig 1: Identifying ME-SFI Control Module Couplings, Stop Watch And 126-Pin Socket Box

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
