Connect socket box for testing ME-SFI fuel injectors - AD07.61-P-2300-02C

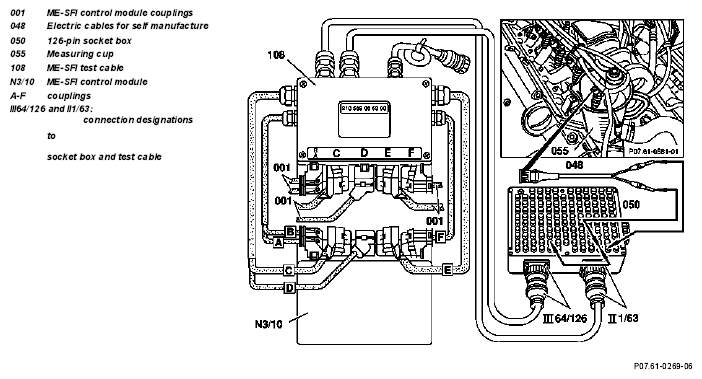

Fig 1: Identifying ME-SFI Control Module Couplings, 126-Pin Socket Box And ME-SFI Test Cable
G04624136Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
