Motor electronics (ME-SFI) fuel injection and ignition system position of components - GF07.61-P-0001-01S

Model 210

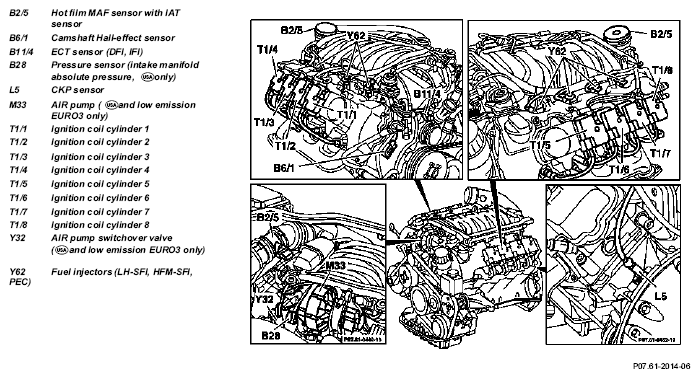

Fig 1: Identifying Hot Film MAF Sensor, Camshaft Hall-Effect Sensor And ECT Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

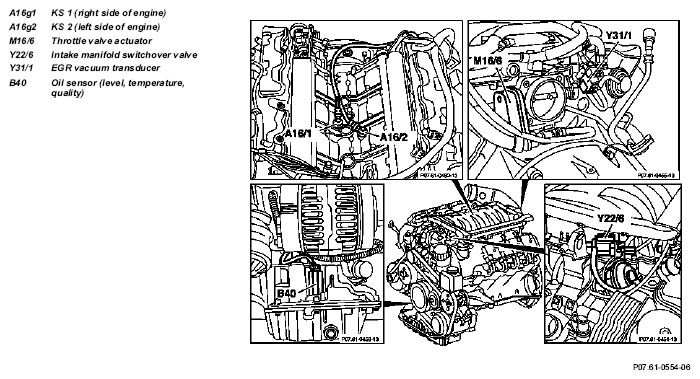

Fig 2: Identifying Throttle Valve Actuator, Intake Manifold Switchover Valve And EGR Vacuum Transducer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

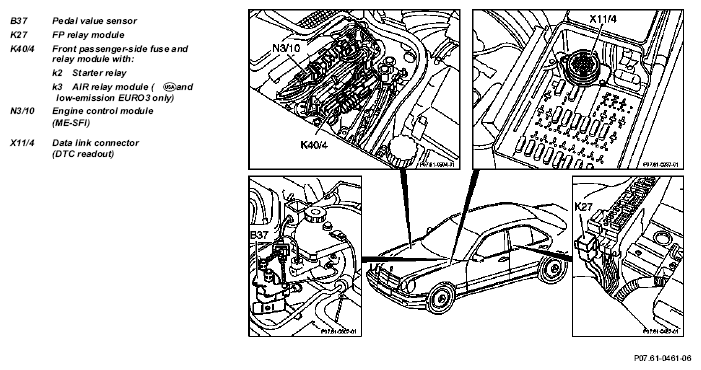

Fig 3: Identifying Pedal Value Sensor, FP Relay Module And Data Link Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

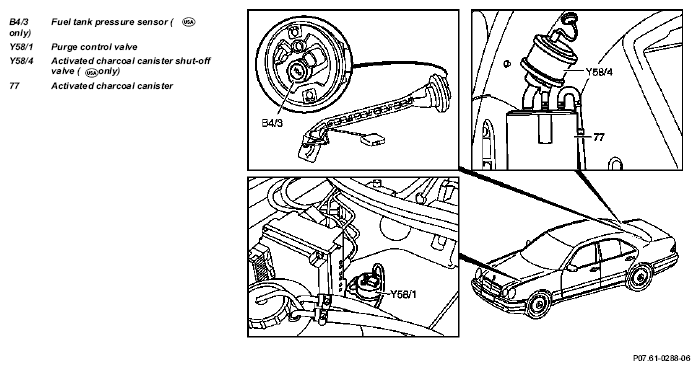

Fig 4: Identifying Fuel Tank Pressure Sensor And Purge Control Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

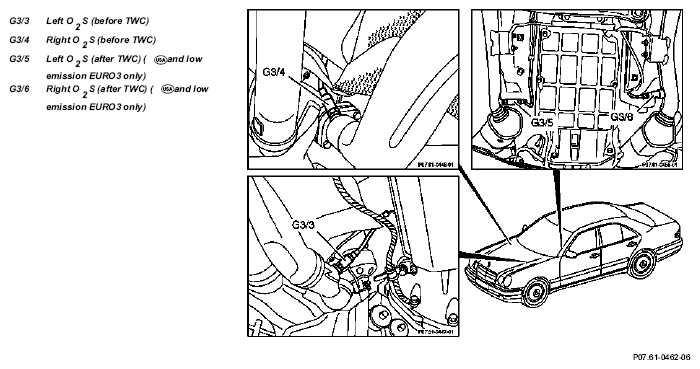

Fig 5: Identifying Left And Right O2 Sensor (Before TWC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

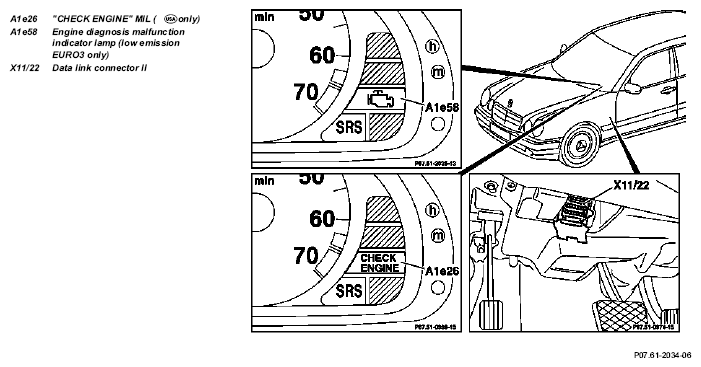

Fig 6: Identifying Engine MIL And Engine Diagnosis Malfunction Indicator Lamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
